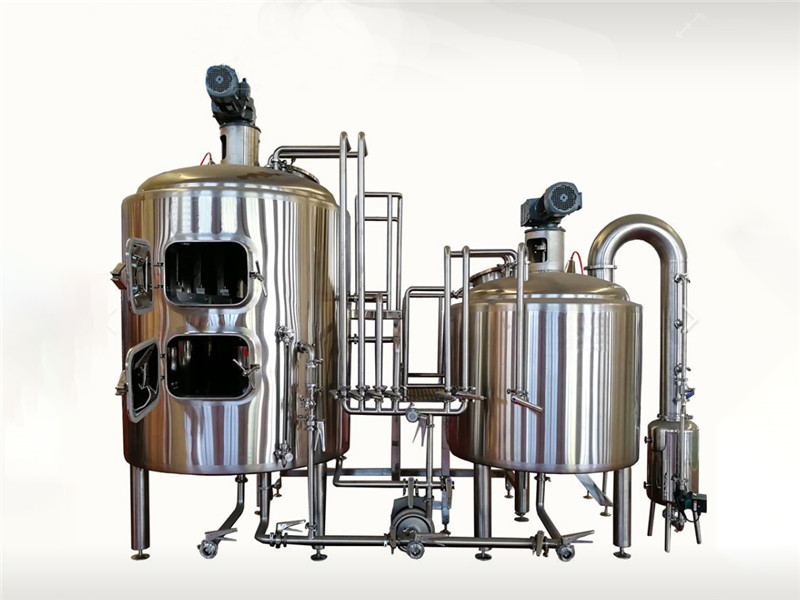

1000L Craft Beer Equipment German Style Mash/kettle Tank+Lauter/Whirlpool Tank
Configuration
| Equipment List | Main part | Specification information |
| Grain Miller | Malt Mill | 300Kg/h~500kg/h |
| Mashing System | Mashkettle tank Lauter /Whirlpool tank Hot water tank Wort Pump Hot water pump Heat Exchanger Wort Oxygenate Assembly Sanchorometer Titanium Stick Survey Barrel | 1000HL 5m3/h |
| Fermentation System | Fermentation Tank | 1000HL |
| CIP Cleaning System | Sterilization Tank Alkali Liquor Tank CIP Pump | 100L |
| Cooling System | Glycol Tank Chiller Ice Water pump | 2000L 10HP |
| Control System | Control Cabinet Digital Controller | 700×400×2000 C2015 |
Quality control
1. After receiving the order, we will hand over the technical personnel to design the equipment drawings. After the drawings are completed, they will be submitted to the cheif engineer for review. If there is no problem, they will be submitted to the customer for review;
2. before the production, technical staff, seller and procurement, production department, etc. will discuss the technical details of the equipment; If no problem, hand in the drawings, the technical list to the production and procurement department;
3. In the production process, the quality inspection personnel will regularly check the production details of the equipment and re-qualify the production;
4. When the equipment is completed, it will be inspected by the quality inspectors.
How to test, how to test, quality control, quality control of finished products?
1. Pipe connection, water test for 24 hours
2. The inner cone is polished to 0.4μm, and the inner cylinder and the outer cone are protected by the surface; the inner and outer of the dish-shaped head, the outer cover and the outer cylinder are sandblasted;
3. After the production is completed, the cylinder is filled with water for leak test, and the jacket is subjected to water and pressure test, and the test pressure is 0.4 MPa;

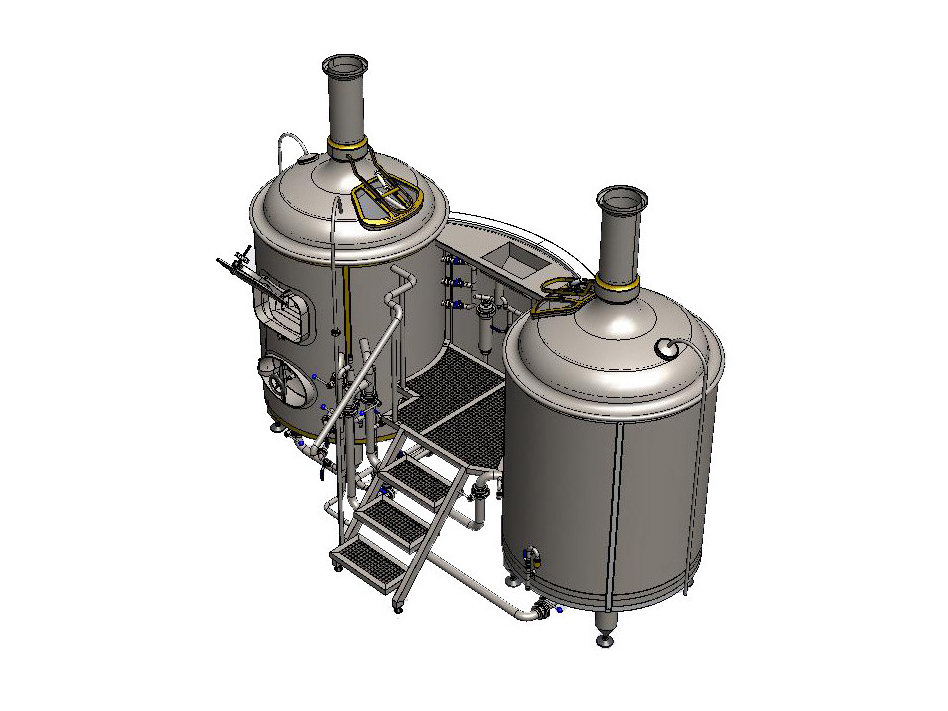

3D Pictures
Configuration
1.Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger to directly lift the milled grain to mash tun

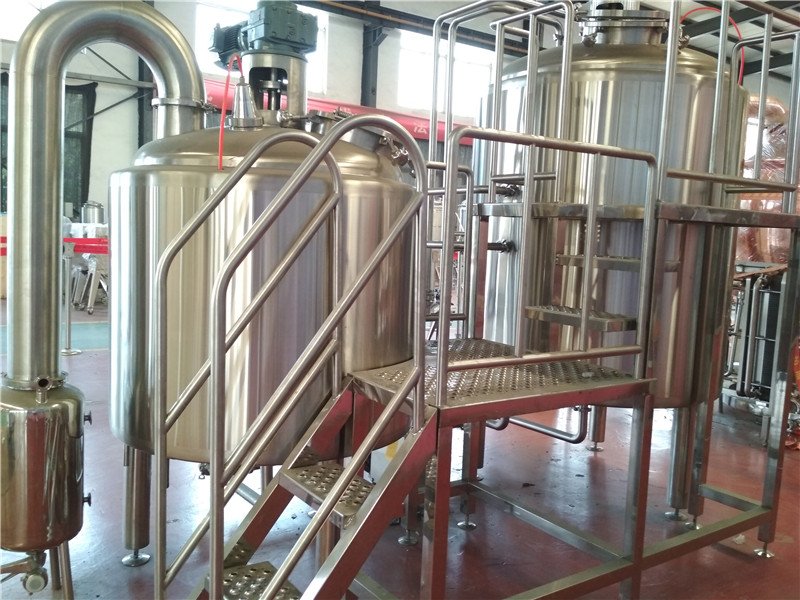

2.1000L Brewhouse Unit
Mash/kettle tank+Lauter/whirlpool tank in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
3.1000L or 2000L Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
4.Beer Filter Unit
Craft beer is no need filtration which will keg filling for quickly consumption
Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer
5.1000L or 2000L Bright Beer Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size or double size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
6.Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
7.Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
8.Beer Dispense
Keg filling and rinsing machine
Semiauto bottling machine with rinsing, filling, capping, labeling etc
Flash pasteurizer or tunnel pasteurizer is available
9.Other Facilities
Portable or fixed CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery lab instruments for beer quality test
Glycation Details
1. Inside heating device
2. Upper Interior Lauter Tun
3. ring filtration pipe

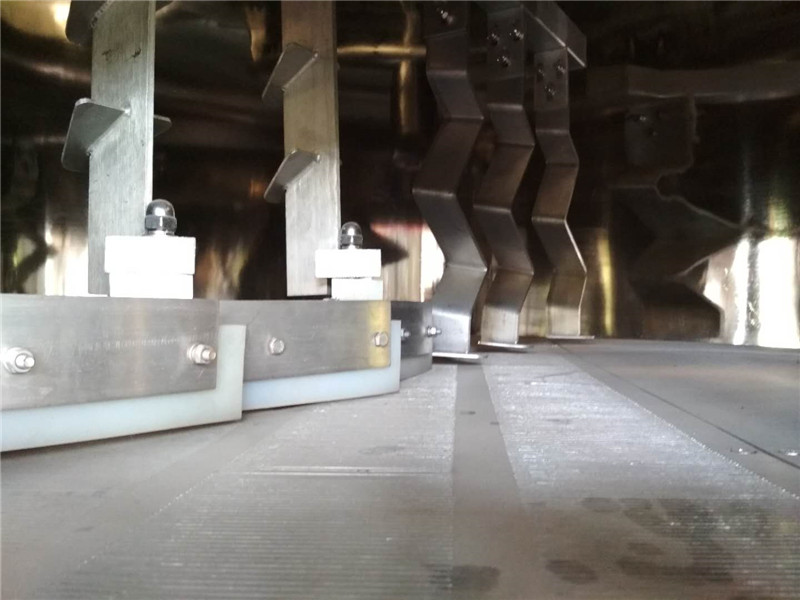

4. False Bottom-Back
5. manhole

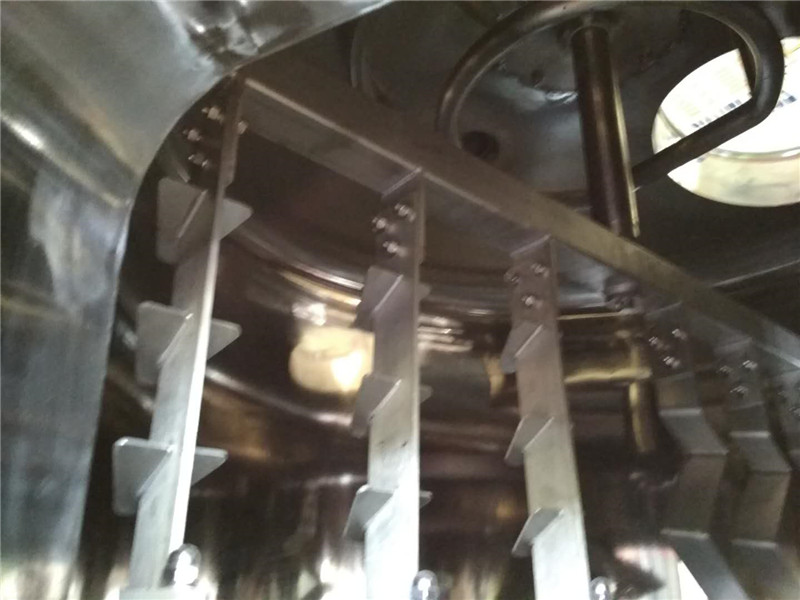

6. inside stir
7. buffer tank
8. Grain door
9. Feed water mixer
Fermenter Detail
Content Gauge
Inside of FV
Manhole
Racking Arm
Sample Vavle
Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun
Plate heating exchanger
Steam Boiler
Weld Polishing
F.A.Q
1.Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.Is your goods has ISO9001 or CE certificate ?
Yes, all our goods has ISO and CE certificate. All machines are high quality goods.
3.Q: Are you a manufacturer?
We are the manufacturer of beer brewing equipment for more than 10 years.
4.Q: Can you do OEM or ODM?
Yes, we can do.
5.Q: How to control temperature ?
PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
6.Q: Which export port you use?
Commonly we will use Qingdao port, sometime,it can appoint as you like.
7.Q: How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
8.Q: How about the warranty?
All our equipment main part has 10 year quality warranty. And we provide life long time technical support,spare parts and other assistance.
| Output/Brew | 10HL |
| Brew/Week | 6~12 |
| Output/Week | 60~120HL |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/Directly Fired |
| Area Request | >70M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
