1000L Craft Beer Equipment
01
1000L Craft beer equipment of mash tun/lauter tank/kettle tank/whirlpool tank with fermentaiton tanks
Beer Equipment Introduction
Brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale lager, amber lager, dark lager, ale and etc at proper temperature with different raw material. According to the client’s requirement, Supermax can produce stainless steel 304 brewhouse, copper and etc.
Advantages Of Beer Equipment
1.High cost performance.
2.Good abrasion resistance materialcopper beer equipment.
3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4.Polishing accuracy up to Ra0.4μ m .
5. Strict tank pressure test.
6. Energy conservation and pollution emissions.

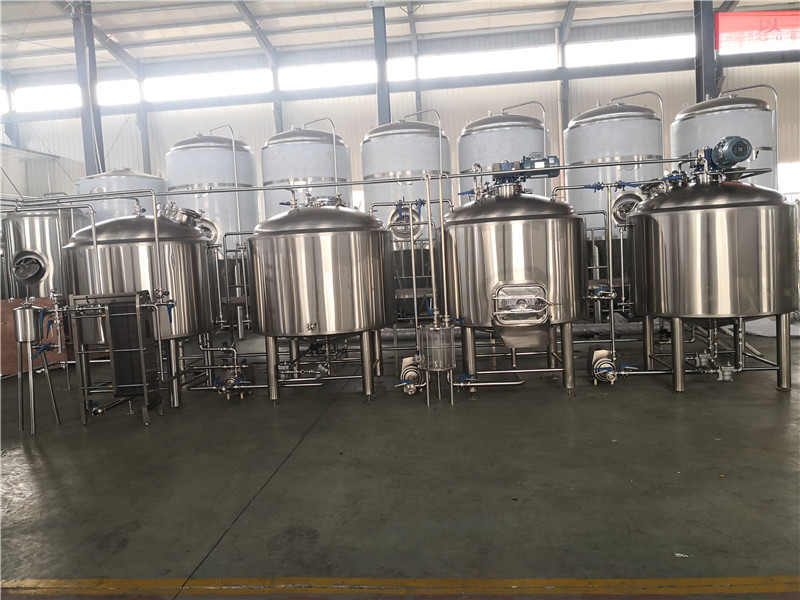

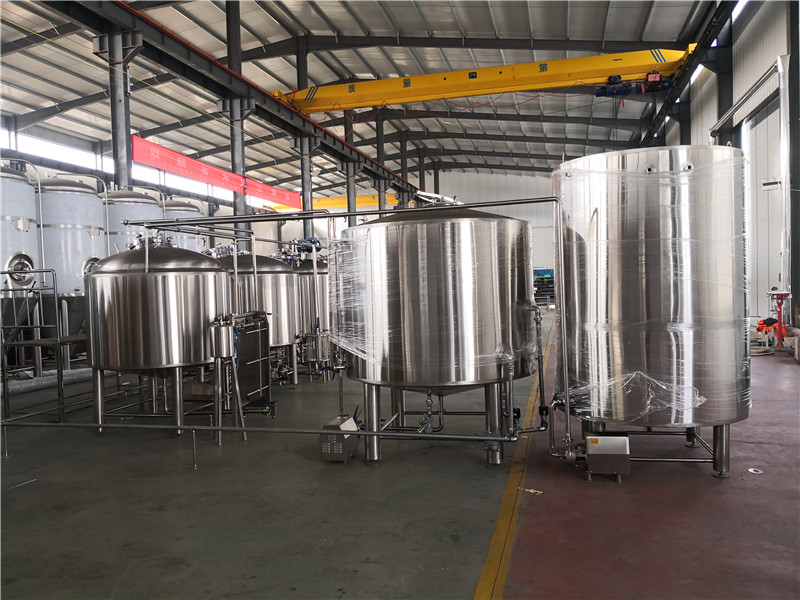

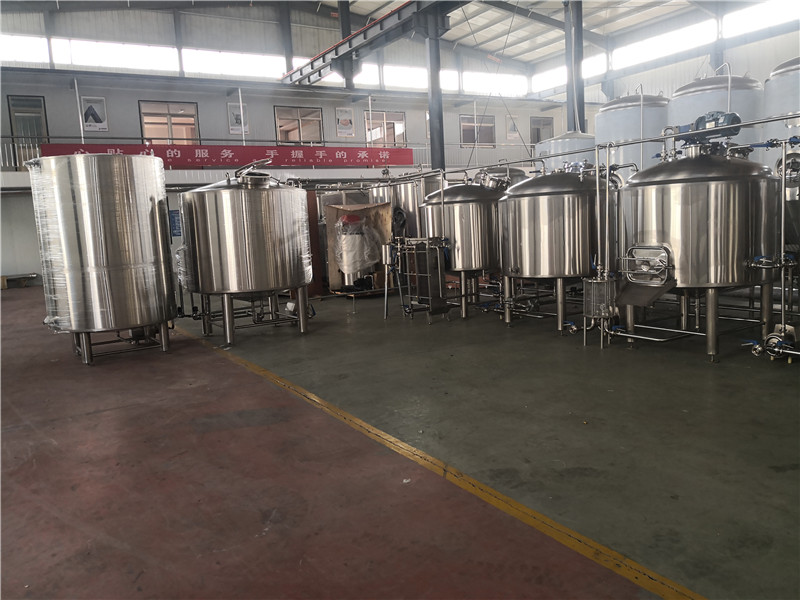

4-Vessel Main Features
A Four-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example: Mash tun, Lauter tank and kettle tank/ whirlpool tank.
Glycation Details
1. Inside heating device
2. Upper Interior Lauter Tun
3. ring filtration pipe
4. False Bottom-Back
5. manhole
6. inside stir
7. buffer tank
8. Grain door
9. Feed water mixer

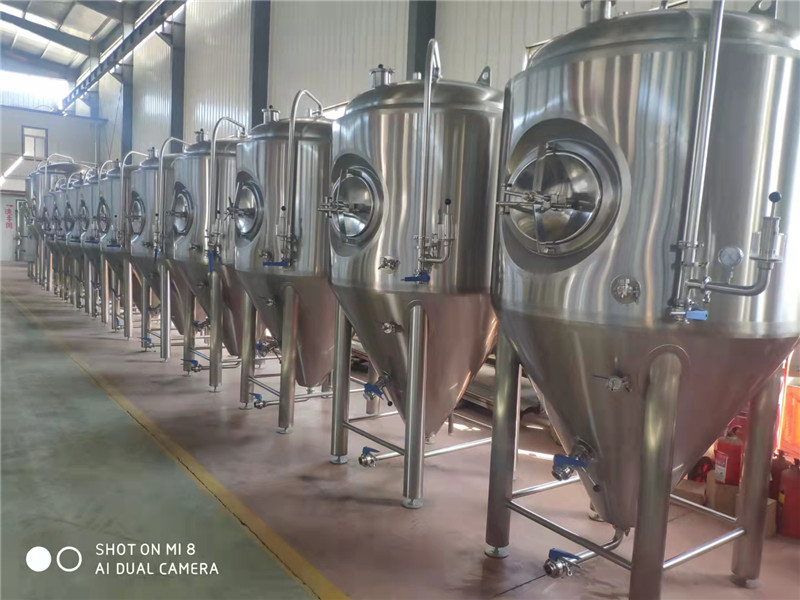

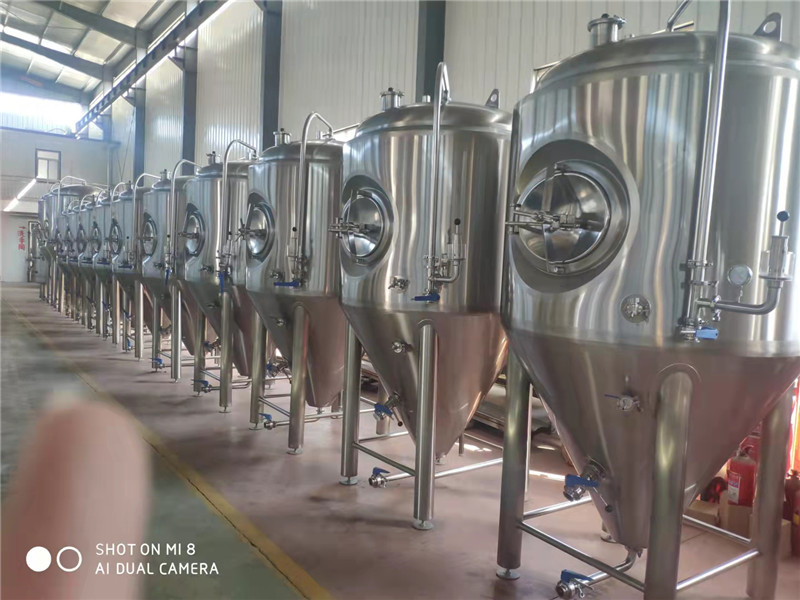

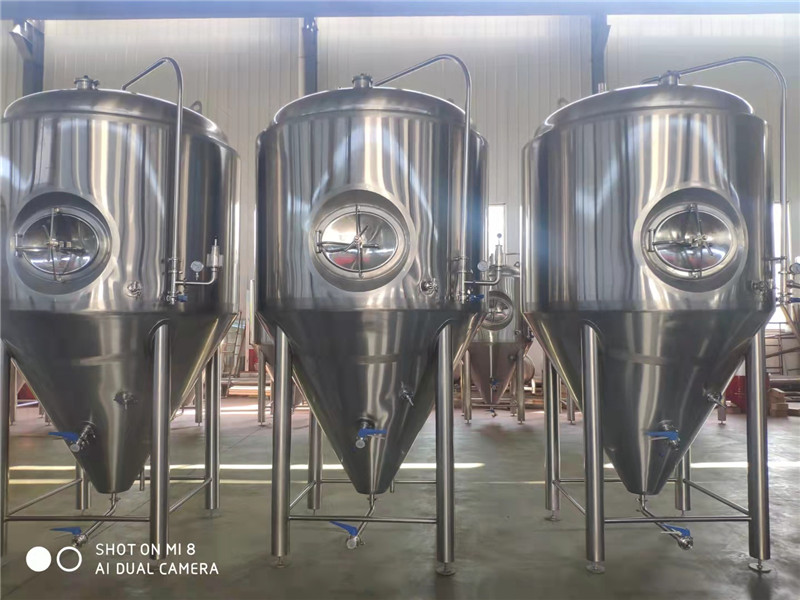

Fermenter Detail
Content Gauge
Inside of FV
Manhole
Racking Arm
Sample Vavle
Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun
Plate heating exchanger
Steam Boiler
Weld Polishing
| Part 1: Grain Miller | |
| Capacity | 300-500kg/hr |
| Function | Curshing malt for mashing |
| Material | Carbon steel or stainless steel |
| Crushing Particle Size | Adjustable |
| Wheels | Optional commercial brewing system |
| Part 2: 4 vessel brewhouse | |
| Capacity | 1000L brewhouse tanks and 2000L hot liquor tank |
| Brewhouse structure | Mash tun/lauter tank/kettle tank/whirlpool tank+hot water tank |
| Heating method | Steam heating( Boiler/ steam generator is necessary) |
| Direct fire heating and Electric heating are optional | |
| Pump | 1 set wort pump+1 set hot water pump |
| Platform | Included turnkey 1000l beer brewing equipment system |
| Heat exchanger | Double stage brand |
| Customization | Customize tank structure, pipe flowing, installation and others |
| Part 3: Fermentation Tank | |
| Capacity | 1000L fermenter or 2000L fermenter |
| Size | Φ1210mmx2710mm or Φ1560mmx3130mm(Customized ) |
| Function | Beer Fermenting/first fermentation |
| Structure | Double wall with jacket and insulation |
| Manway Site | Top or Side, optional |
| Cooling medium | Glycol water |
| Fermenting pressure | 2bar or 3bar beer making machine for beverage |
| Spunding valve | Available for adjusting fermenting pressure inside tank |
| Part 4: Bright Beer Tank | |
| Capacity | 1000L Bright beer tank or 2000L bright beer tank |
| Size | Customized |
| Function | Beer maturing/Secondary fermentation |
| Fermenting Pressure | 2bar or 3bar |
| Part 5: Glycol Chilling System | |
| Configuration | Matched glycol water tank+ chiller+pipeline |
| Control type | Automatic control |
| Installation site | Outdoor beer making machine for beverage |
| Pipeline | PPR; PEX or Stainless Steel |
| 6: Controlling System | |
| Cabinet Material | Anti-power Plastic painting or Stainless Steel cover |
| Assembling Style | Floor/Wall hanging |
| Certificate | CE certificated |
| Control Type | Manual control; PLC automated control is optional |
| 7: CIP Cleaning System | |
| Capacity | 100L |
| Structure | Two tanks with cart and wheels |
| VFD | Yes beer making machine for beverage |
| Independent Controller | Yes |
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212 US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
