1000L Craft Beer Equipment
01
10BBL Craft Beer Equipment Mash Tun+lauter Tank+kettle/Whirlpool Tank+hot Water Tank
3-Vessel+HWT Main Features
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example: Mash tun, Lauter tank and kettle/whirlpool tank+Hot water tank
10BBL Complete Craft Beer Brewing System
1) All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
Advantages
1) All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
Configuration
| No. | Name | Components | Specification |
| 1 | Grain Milling Unit | Rolling Miller | Stainless steel, Double roller, rollers distance adjustable |
| Grain auger | Conveys grist from malt mill to grist case; Inside stainless screw, outside PPR protection tube; Associated motor with frequency conversion | ||
| SS grist hopper | Stainless steel304 | ||
| 2 | Brewhouse unit | Mash/Lauter tun | Grain rake with VFD Laser cutting V-wire False Bottom Easy clean and detachable sparging spray ring Multihole wort collect ring, anti-rinser With side grain out door Tank light assemblies Mash hydration assembly Rotary CIP spray balls Level sight tube |
| Kettle/Whirlpool Tun | Steam Jacket /direct gas fired heating/electric heating Steam vent with condensate ring for kettle stack Tank light assemblies Rotary CIP spray balls Tangential whirlpool entry Level sight tube | ||
| Wort pump | Sanitary wort pumps with variable speed control | ||
| Working platform | OSHA compliant platforms with safety railings & stairs, Cellar package with brewers hoses, valves and fittings | ||
| Hot liquor tank | Steam Jacket heating/direct gas fired heating/electric heating Sight gauge for water level With SS HLT pump with variable speed control | ||
| Heat exchanger | SUS304/316 plate, with wort aeration system | ||
| 3 | Fermentation unit | Fermenter | Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell 60 degree cone bottom, with an average of 25% head space Rotating racking port Glycol cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm for maximum tank space utilization Germany import Kieselmann Mechanical relief valve Shockproof pressure gauge CIP arm and spray ball Dry hop port 4-6” Carbonation stone Inoxpa butterfly valves, sample valve, 2” pressure vacuum relief valve RTD Probe Tension braces on legs Sanitary tri-clamp connections |
| 4 | Bright beer tank | Bright beer tank | Inoxpa butterfly valves, Perlick sample valve Micromatic level gauge, PVRV Clamps and gaskets, pressure gauge, carb stone Stainless steel legs with stainless leveling footpads Interior shell: 304 stainless steel, thickness 3mm Exterior shell: 304 stainless steel, thickness 2mm Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell Dished top and bottom, with an average of 15%-20% head space Carbonation port Side or top manway door, Dimple jacket cooling jackets Polyurethane insulation Level gauge connections CIP arm and spray ball Sanitary tri-clamp connections |
| 5 | Glycol Chilling Unit | Glycol Water Tank | Insulated conical top and sloped bottom Liquid level sight tube for water level Rotating CIP spray ball |
| Cold Water Tank | Cooling jacket on tank with PU insulation Liquid level sight tube for water level Rotating CIP spray ball | ||
| Glycol Chiller | Assembly unit, wind cooling, environmental refrigerant: R404a, compressors and electrical components meet UL/cUL/CE certified | ||
| 6 | Control unit | Brewing and fermentation process Controlling | Manual button control panel or PLC control with touch screen for special, control panel with RTD & solenoid valves |
| 7 | CIP | Caustic Tank | electric heating element inside |
| Sterilization Tank | Stainless steel 304 |

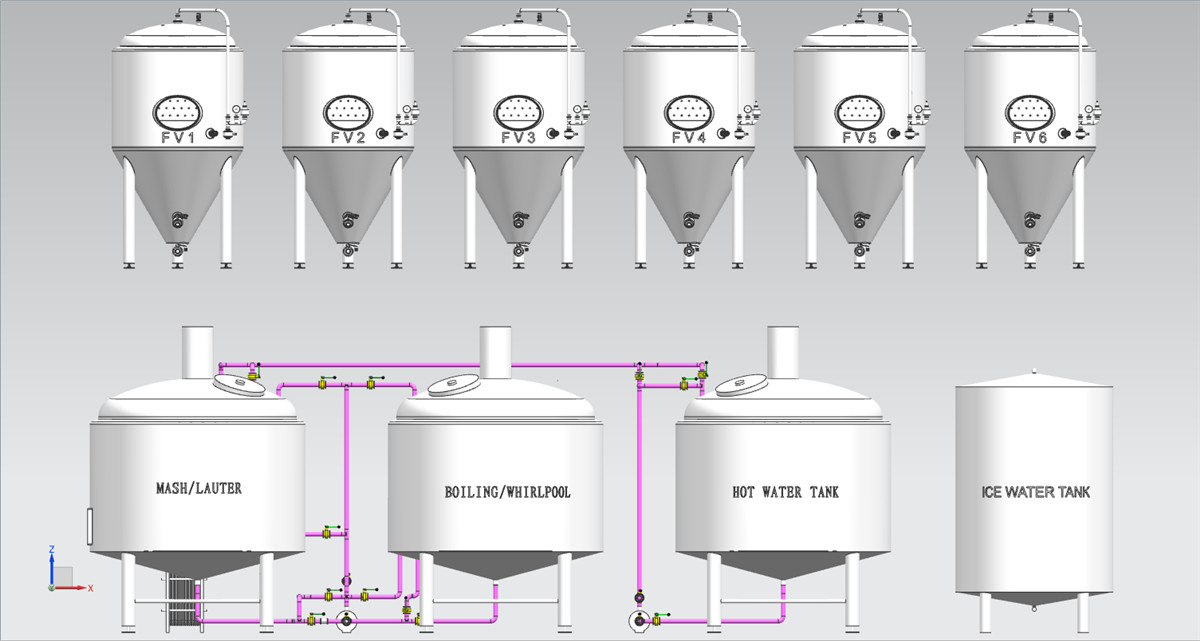

3D pictures
Configuration
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger to directly lift the milled grain to mash tun

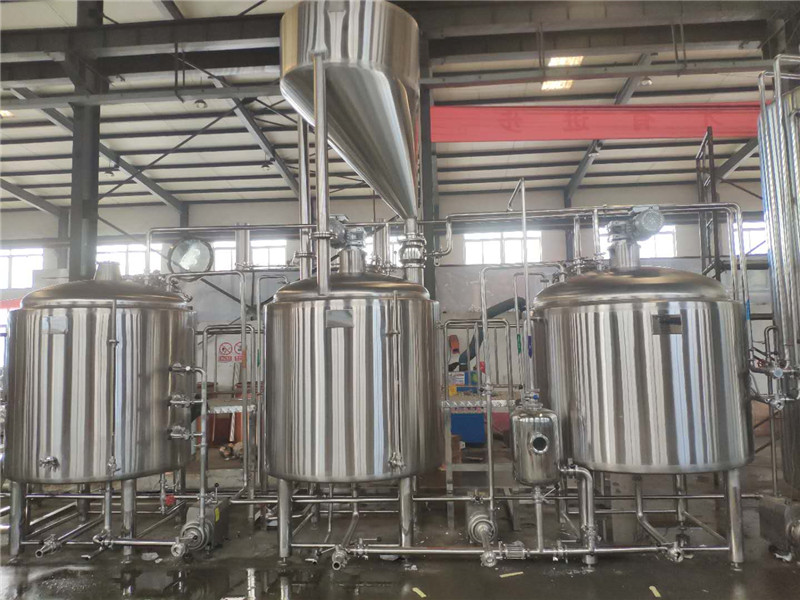

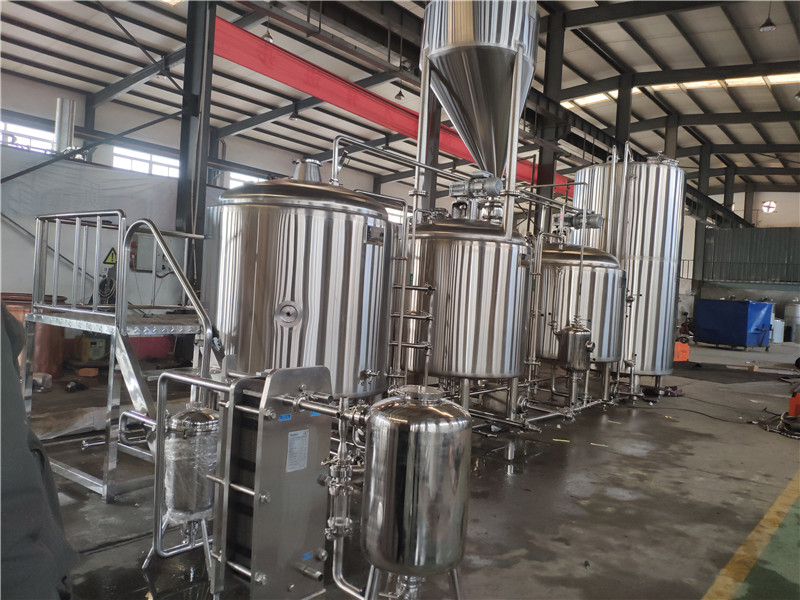

2. 10 bbl Brewhouse Unit
Mash tun+lauter tank+kettle/whirlpool tank in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
3. 10 bbl or 20 bbl Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
4. Beer Filter Unit
Craft beer is no need filtration which will keg filling for quickly consumption

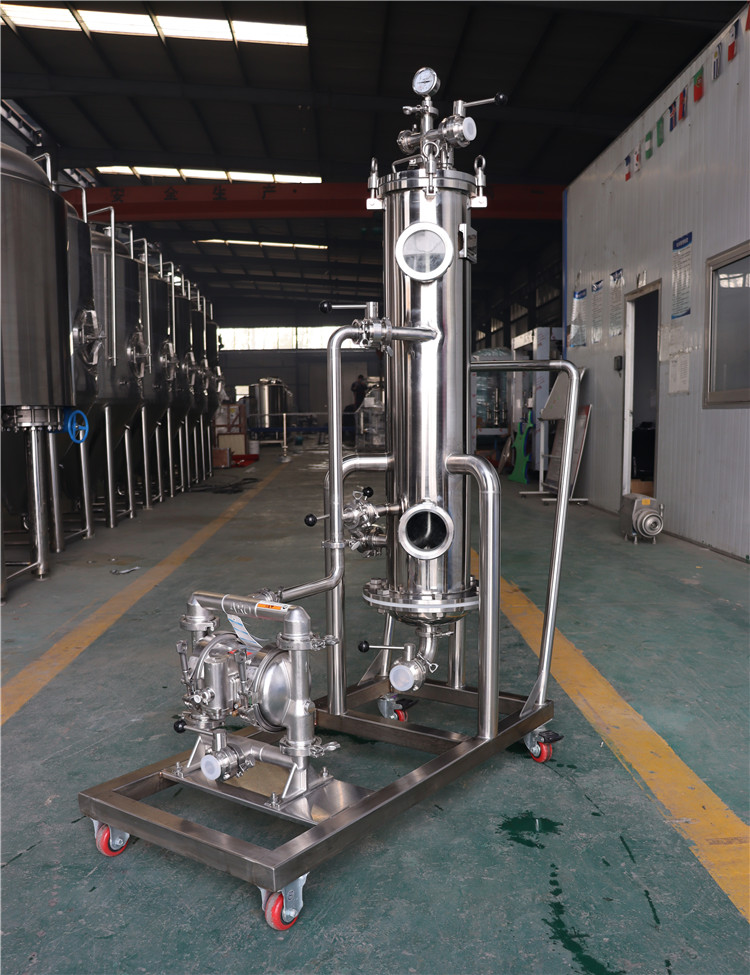

Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer
5. 10 bbl or 20 bbl Bright Beer Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size or double size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
6. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
7. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
8. Beer Dispense
Keg filling and rinsing machine
Semiauto bottling machine with rinsing, filling, capping, labeling etc
Flash pasteurizer or tunnel pasteurizer is available
9. Other Facilities
Portable or fixed CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery lab instruments for beer quality test
Details pictures

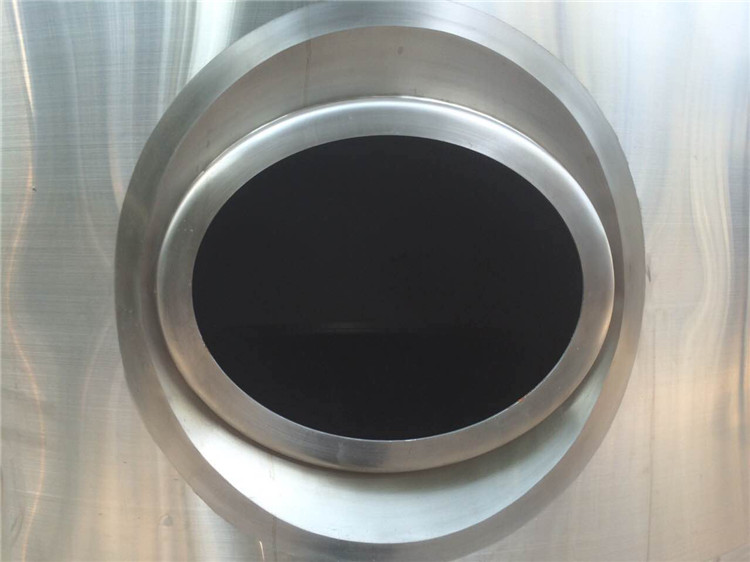

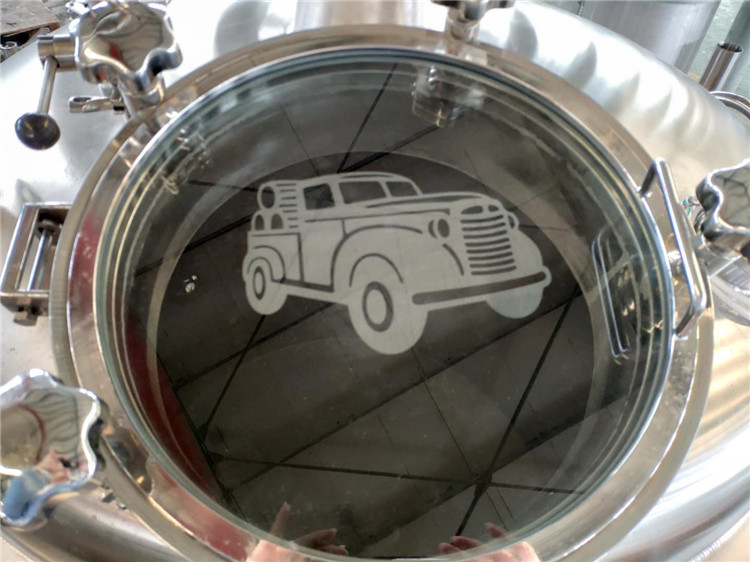

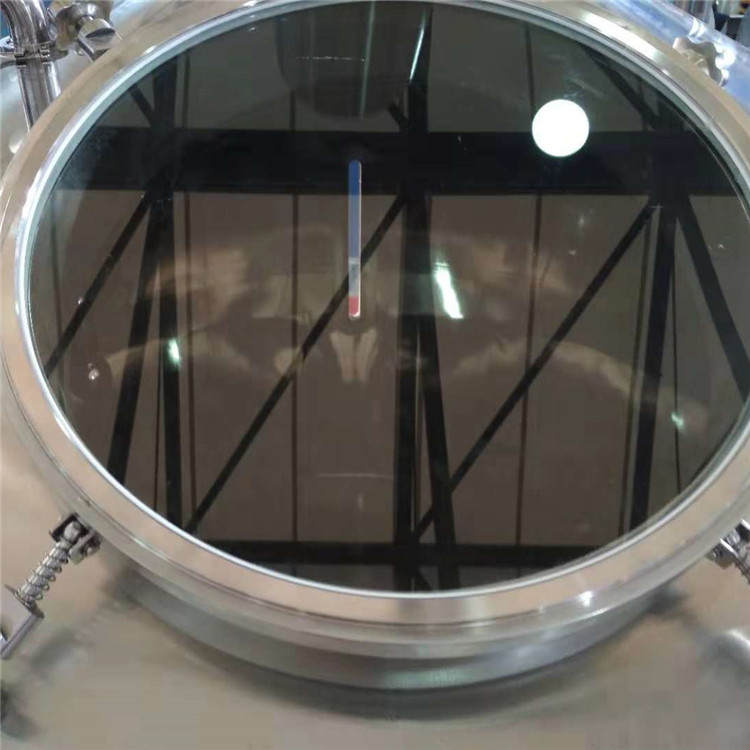

glass manhole

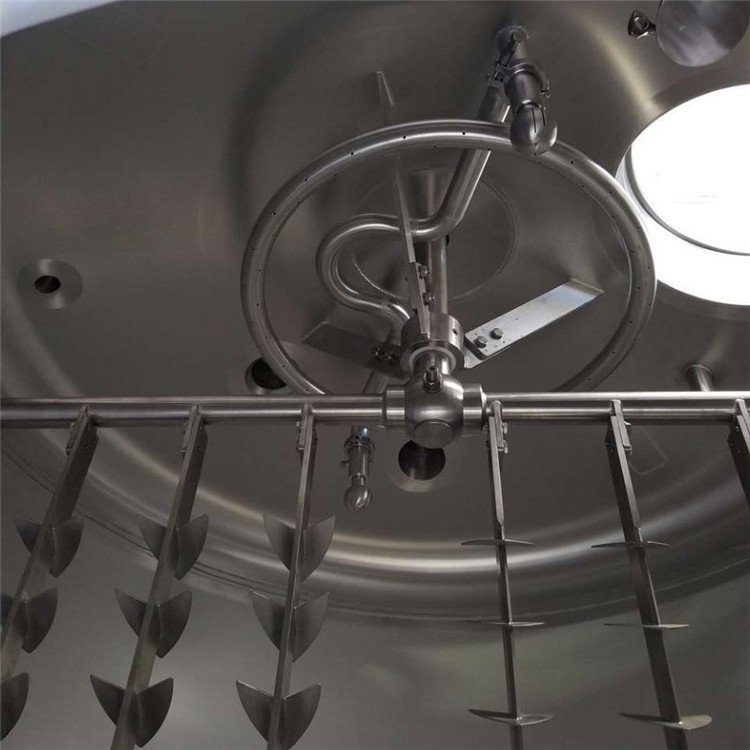

the inside of lauter tank

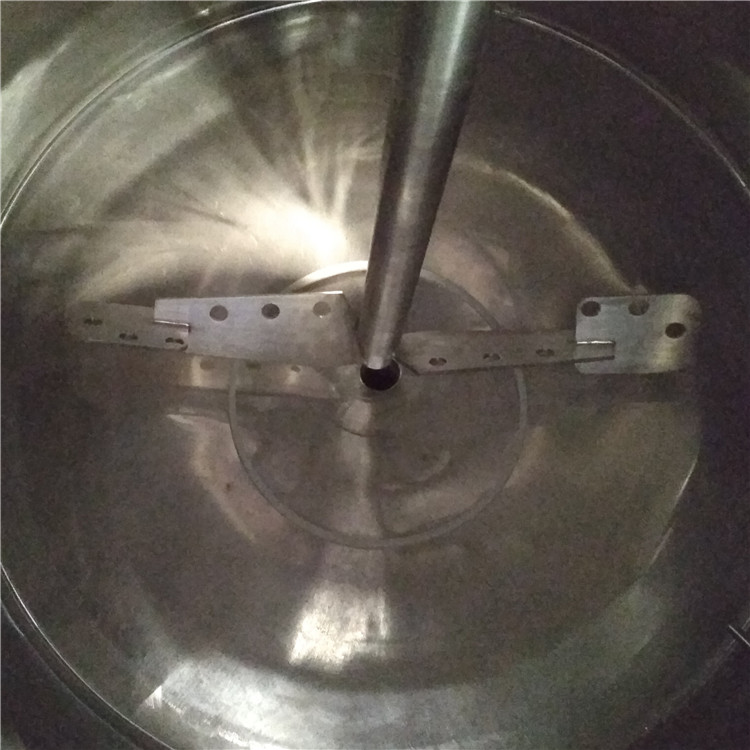

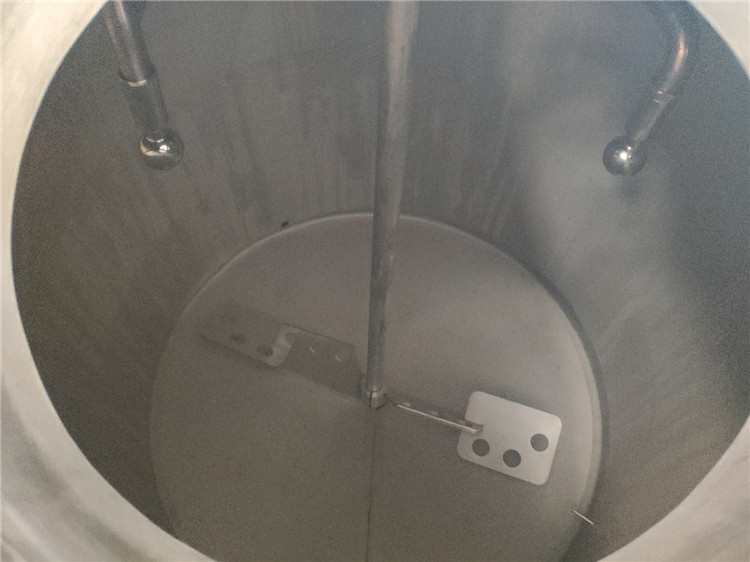

the inside of mash tank

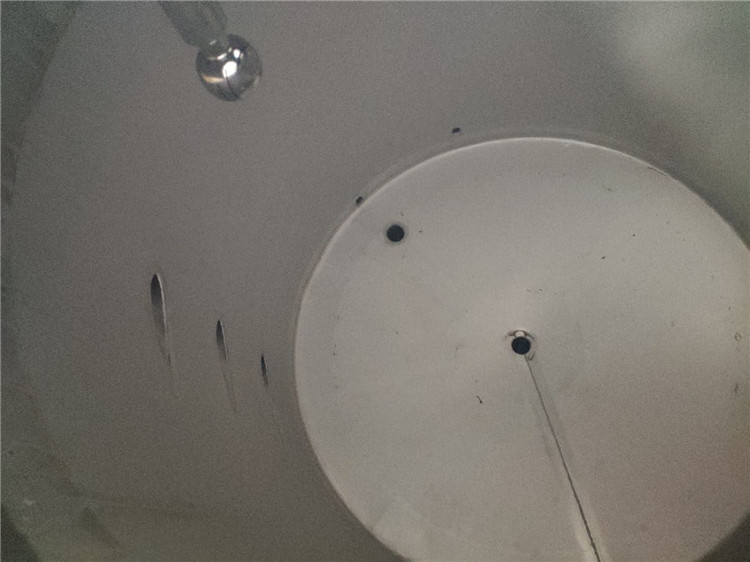

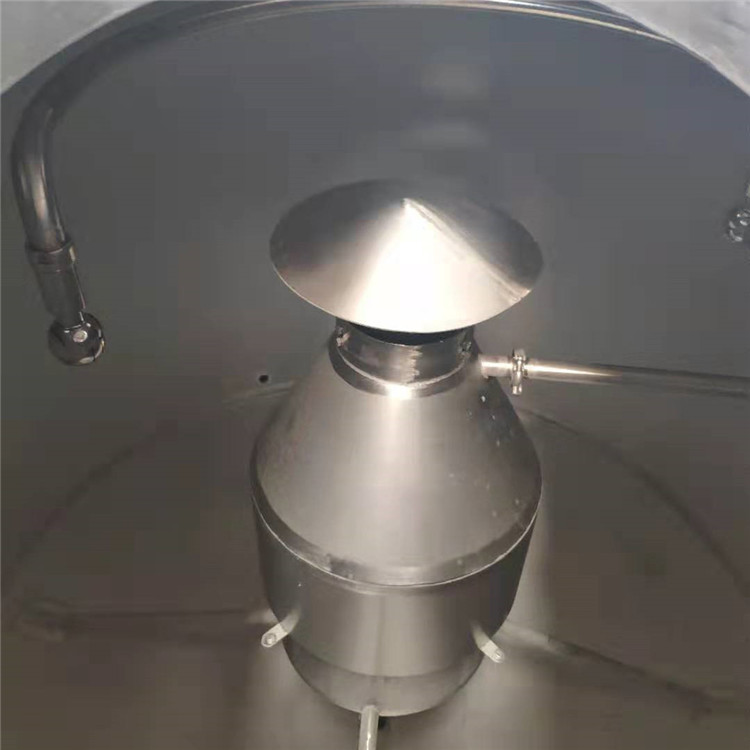

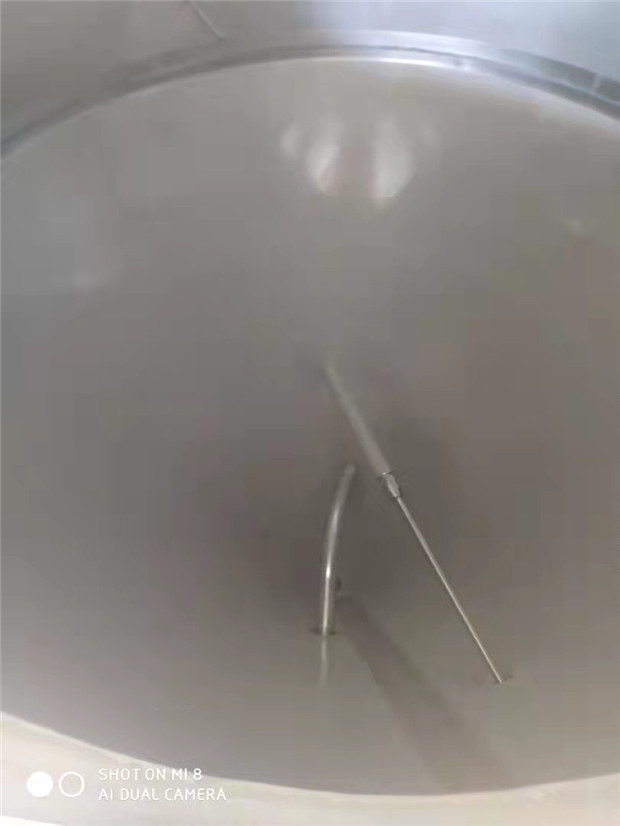

The inside of whirlpool

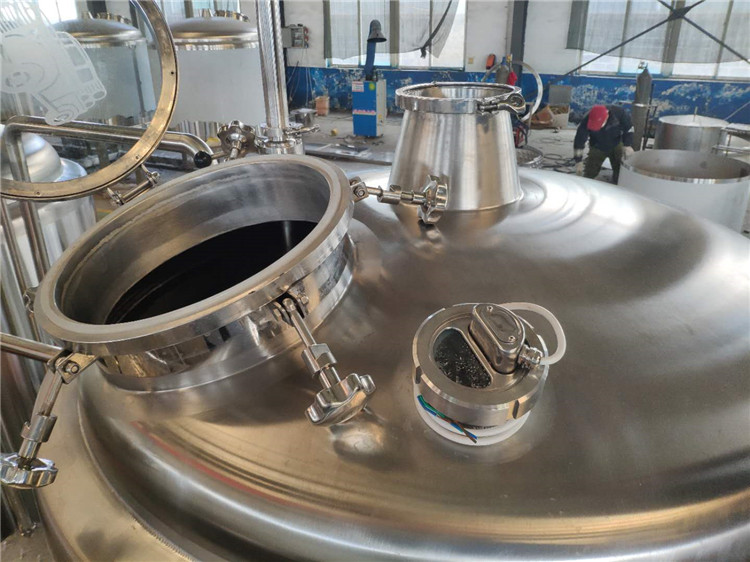

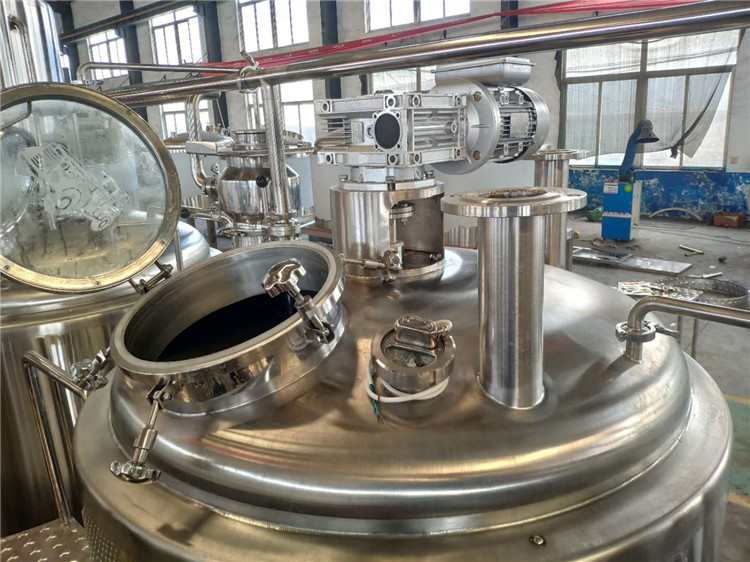

the top of mash

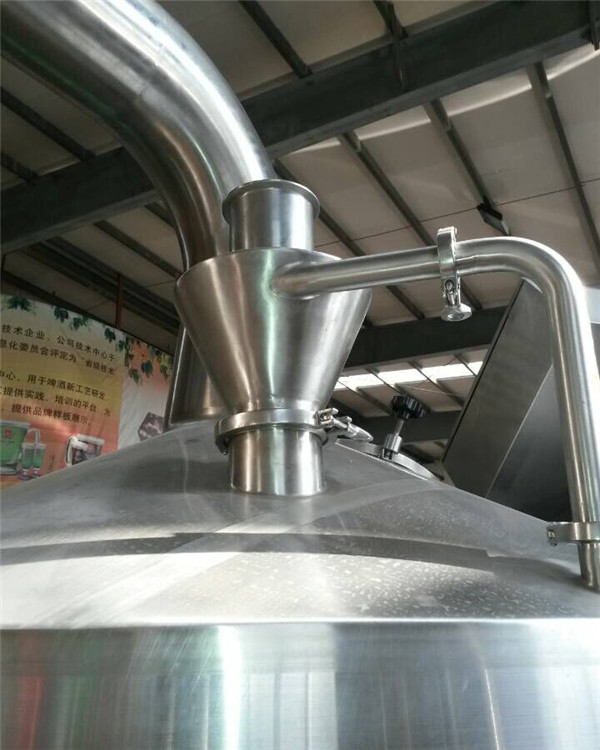

the top of boil tank
Glycation Details
1. Inside heating device
2. Upper Interior Lauter Tun

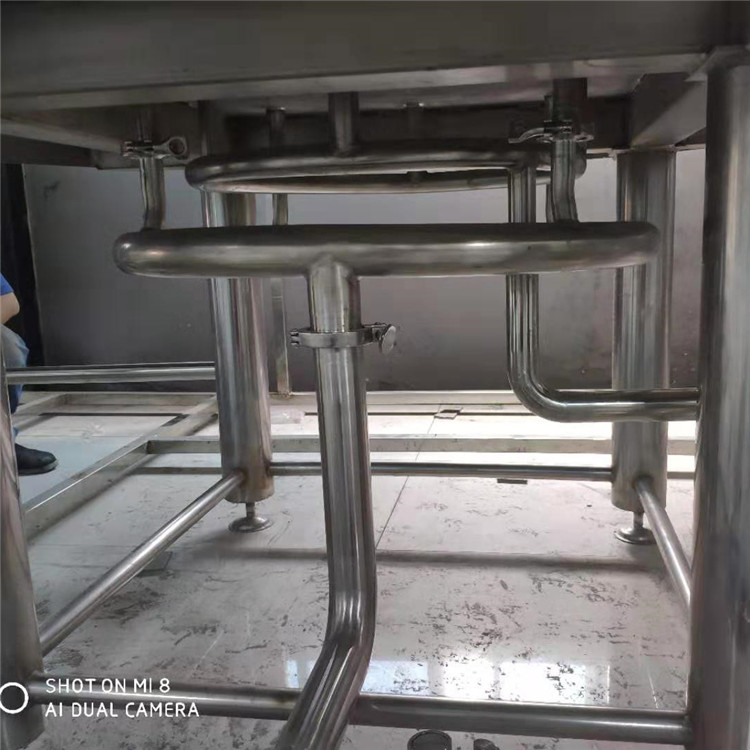

3. ring filtration pipe

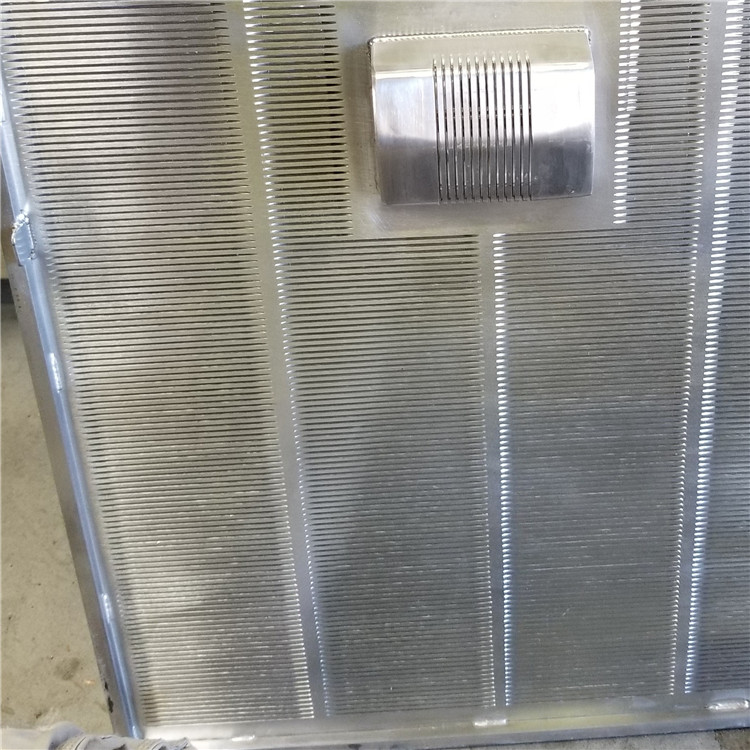

4. False Bottom-Back
5. manhole

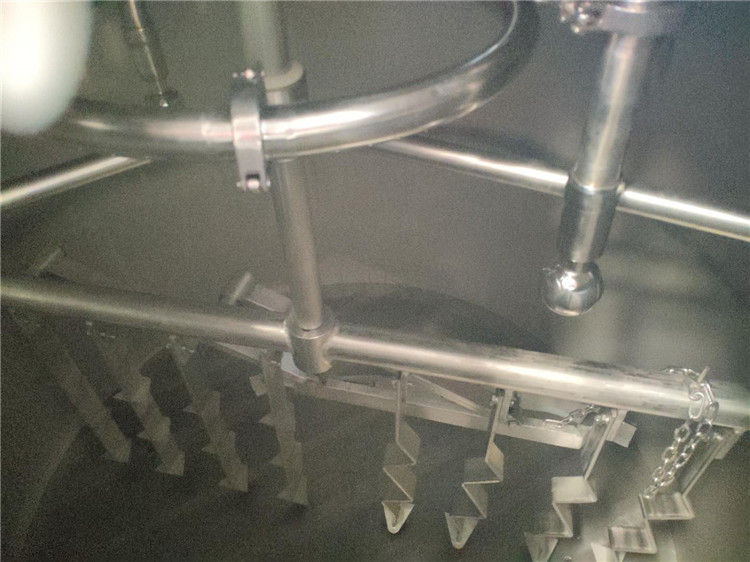

6. inside stir
7. buffer tank

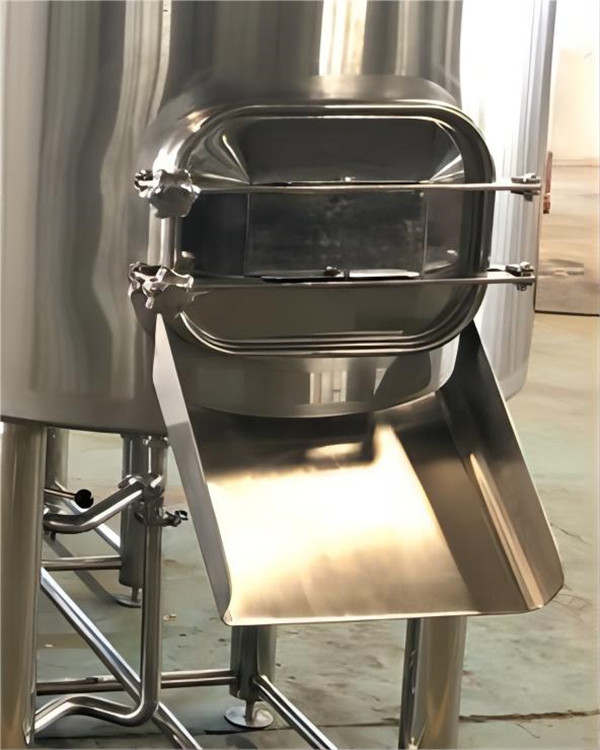

8. Grain door

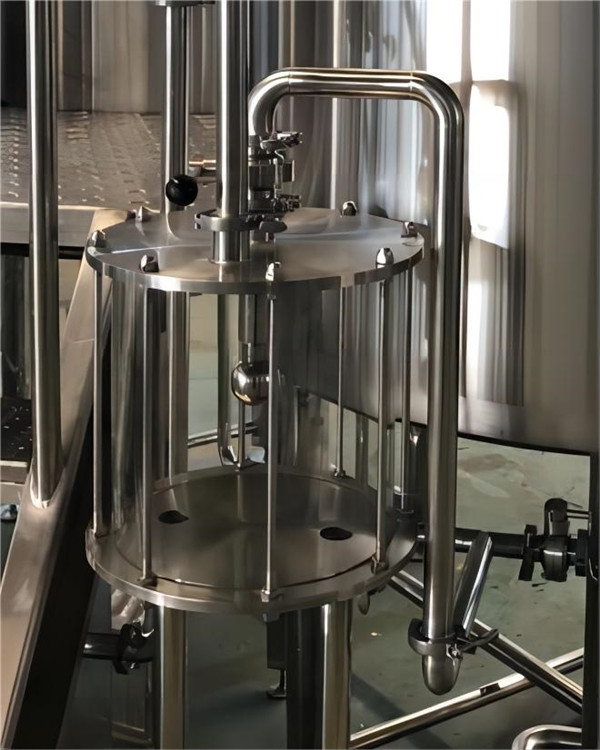

9. Feed water mixer
Fermenter Detail
Content Gauge
Inside of FV

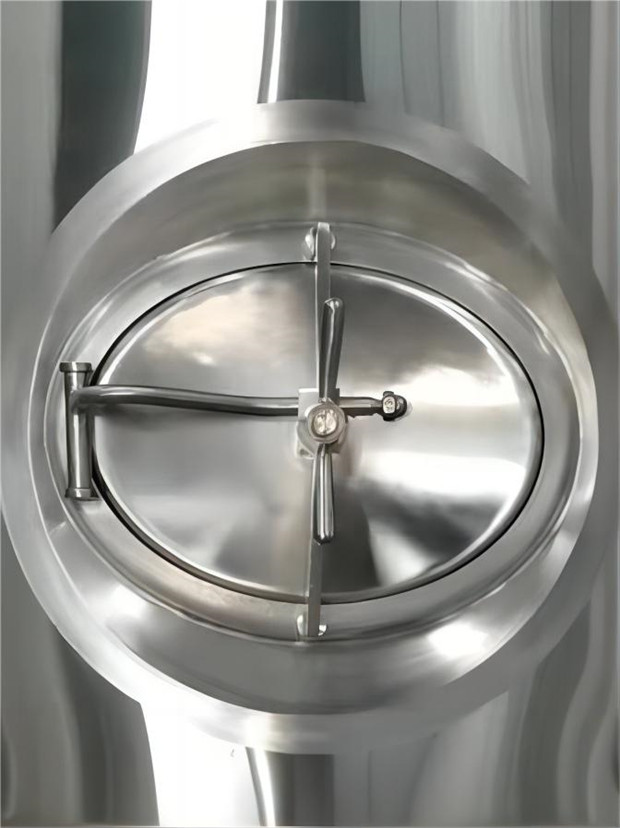

Manhole

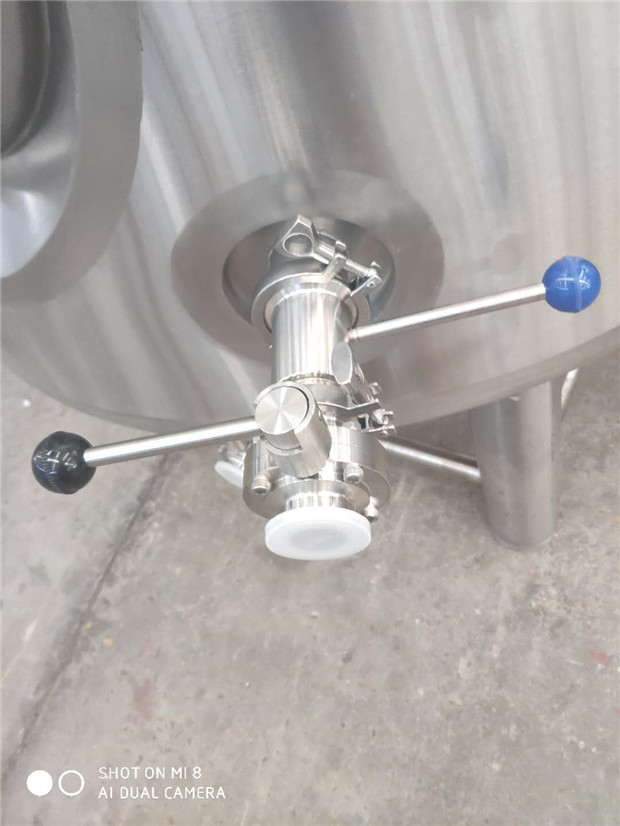

Racking Arm

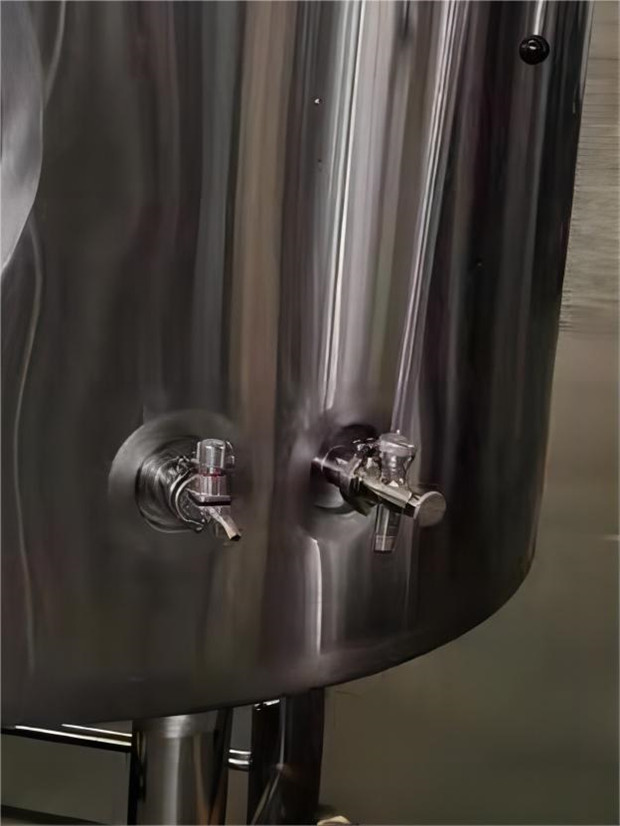

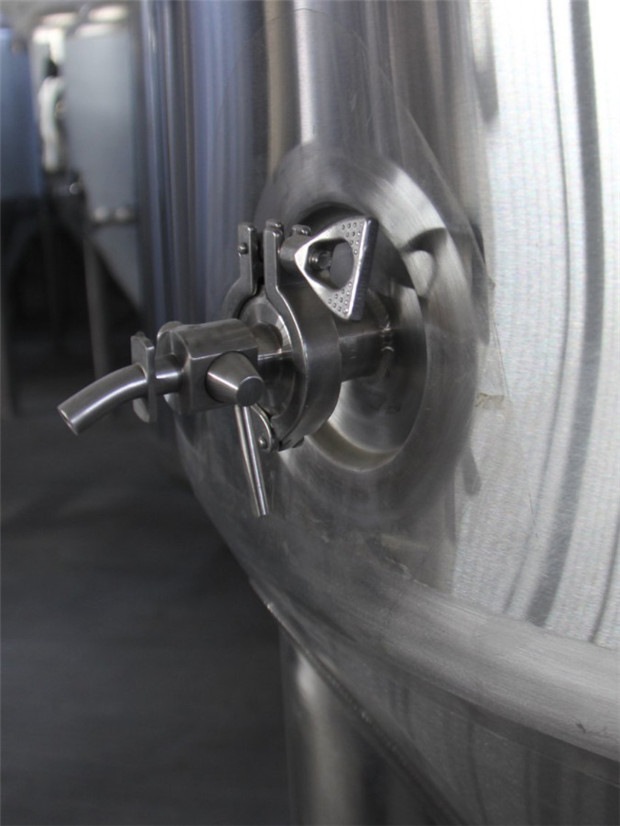

Sample Vavle

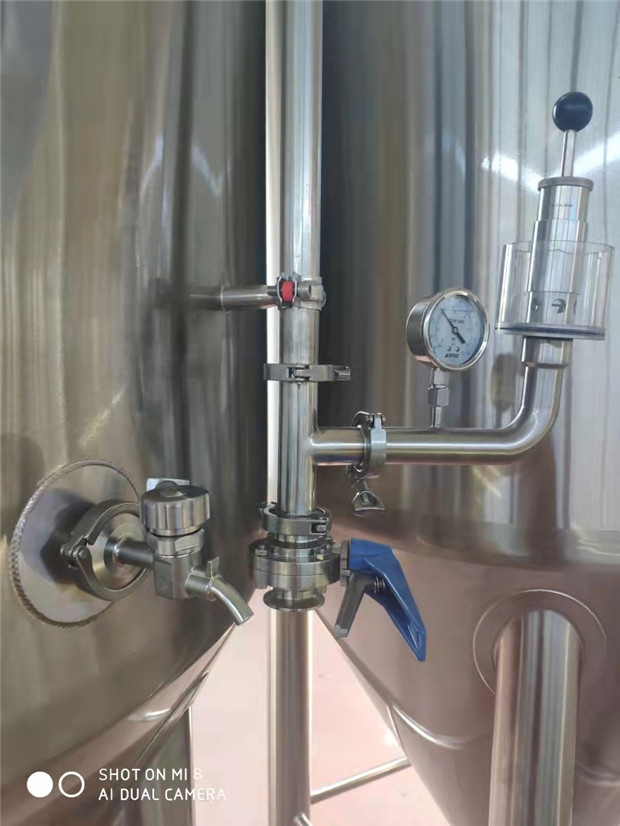

Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun

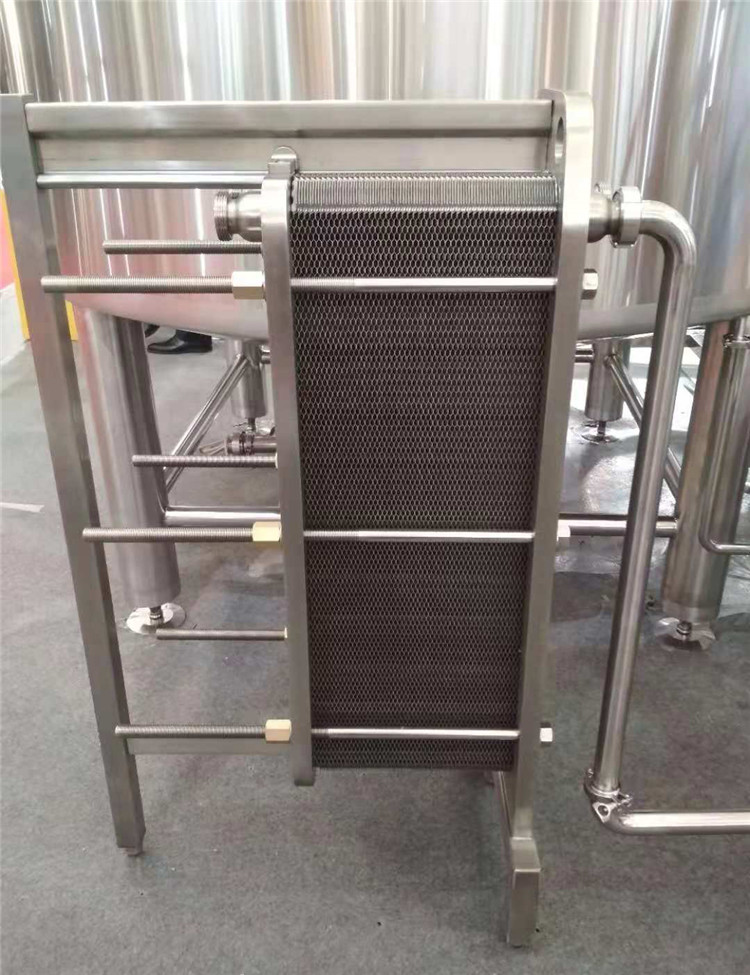

Plate heating exchanger

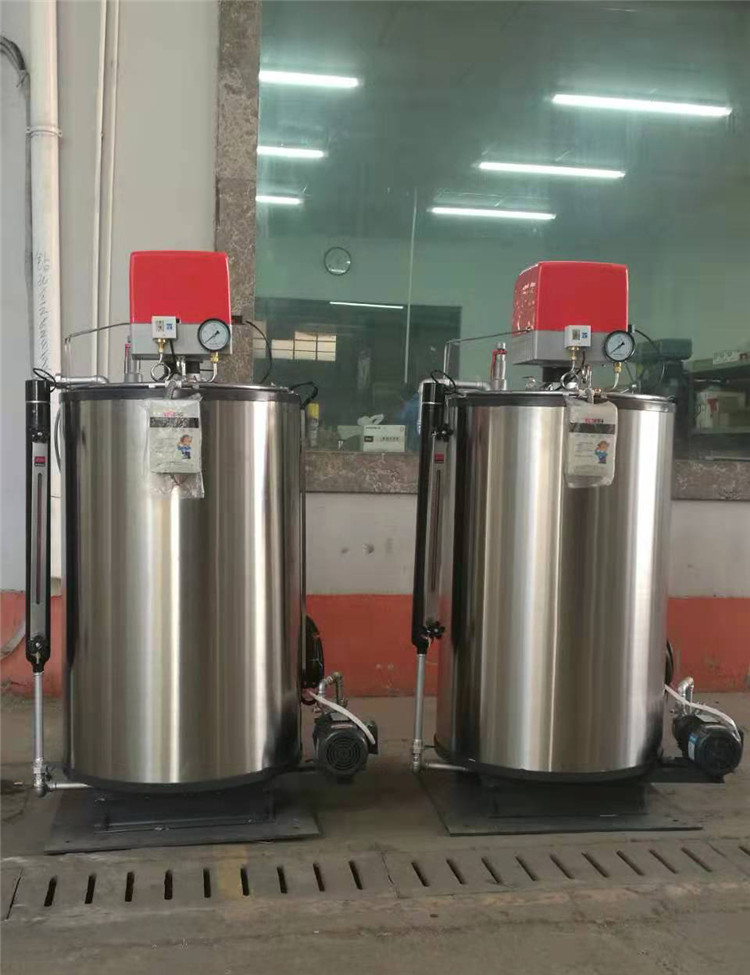

Steam Boiler

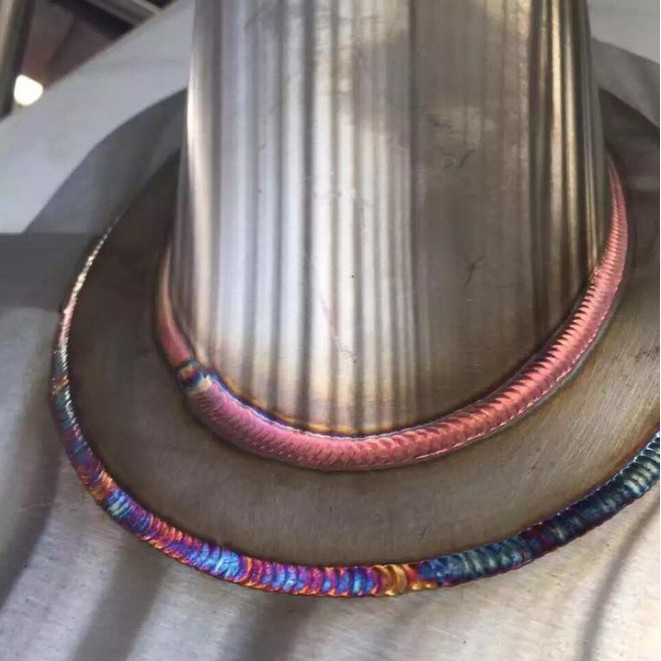

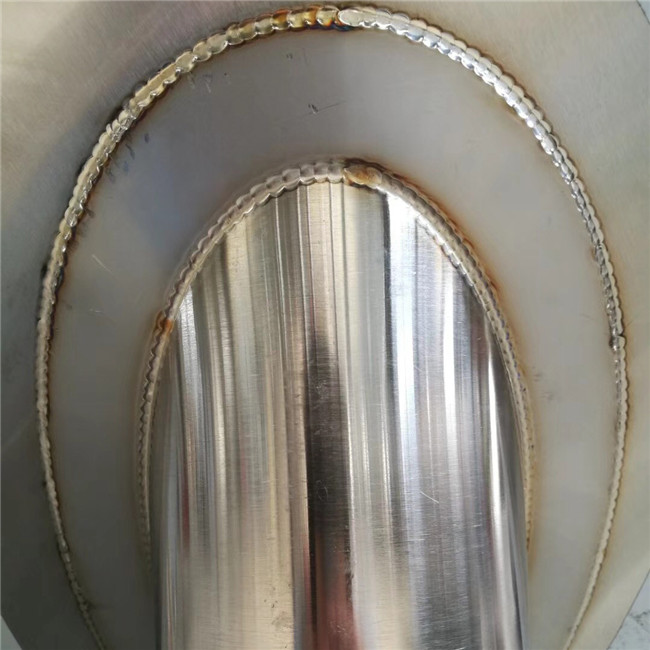

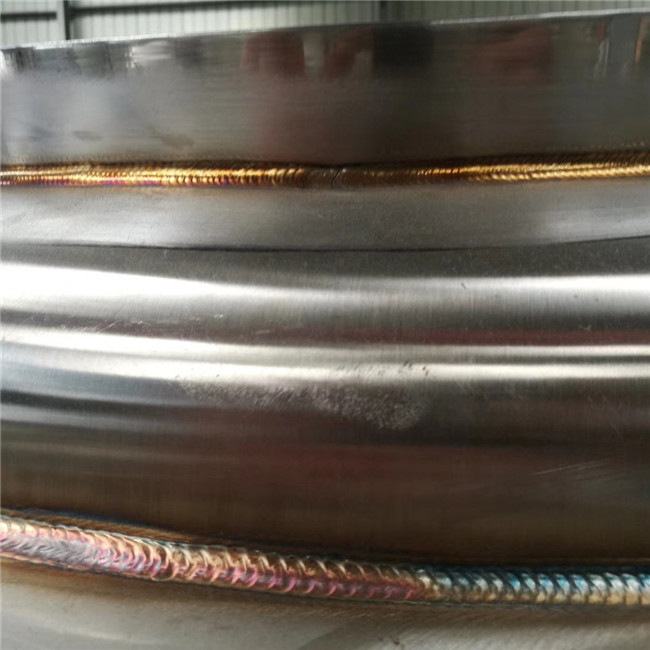

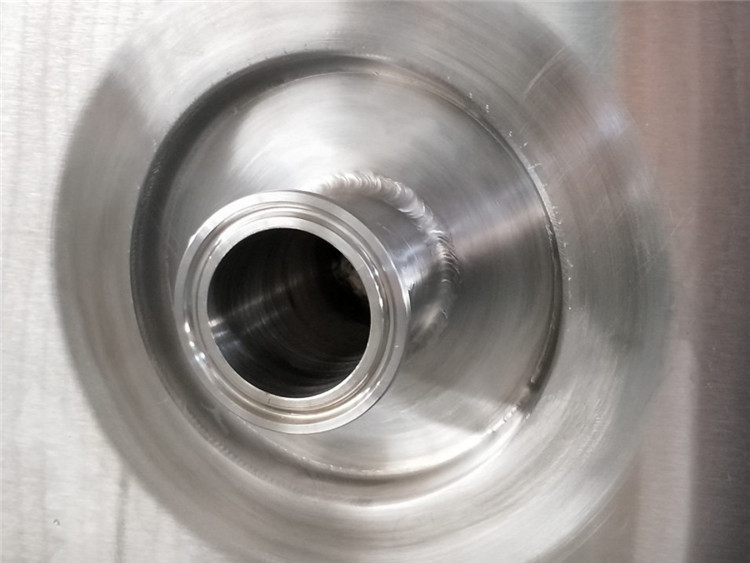

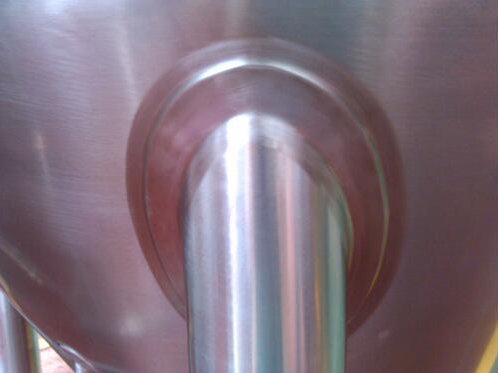

Weld Polishing
F.A.Q
1.Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.Is your goods has ISO9001 or CE certificate ?
Yes,all our goods has ISO and CE certificate.All machines are high quality goods.
3.Q: Are you a manufacturer?
We are the manufacturer of beer brewing equipment for more than 10 years.
4.Q: Can you do OEM or ODM?
Yes, we can do.
5.Q: How to control temperature ?
PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
6.Q: Which export port you use?
Commonly we will use Qingdao port, sometime,it can appoint as you like.
7.Q: How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
8.Q: How about the warranty?
All our equipment main part has 10 year quality warranty. And we provide life long time technical support,spare parts and other assistance.
| Output/Brew | 10 bbl |
| Brew/Week | 2~6 |
| Output/Week | 20~60 bbl |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Electric/Steam |
| Area Request | >45M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-0.5BBL | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-1BBL | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-2BBL | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-3BBL | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-5BBL | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-6BBL | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-7BBL | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-8BBL | 800L/day | 212US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1BBL | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1BBL | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-20BBL | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-25BBL | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-30BBL | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-50BBL | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
