1000L Craft Beer Equipment
01

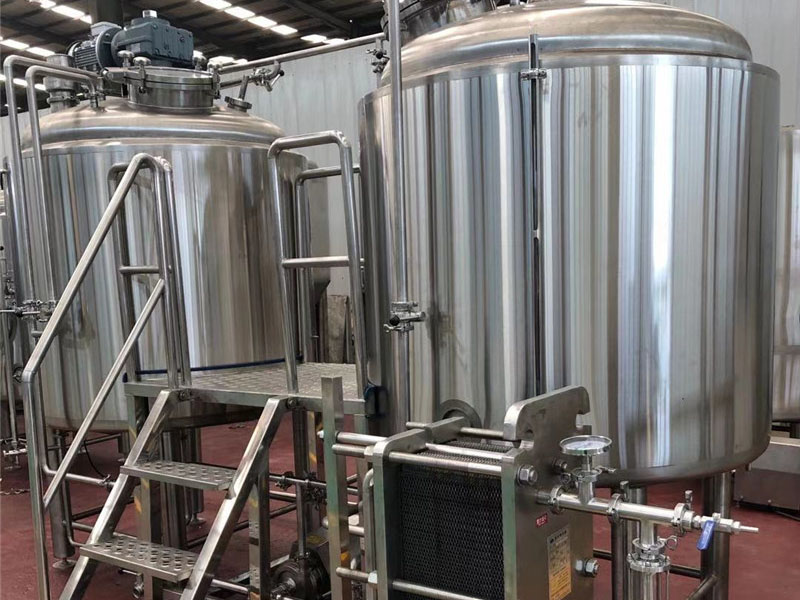

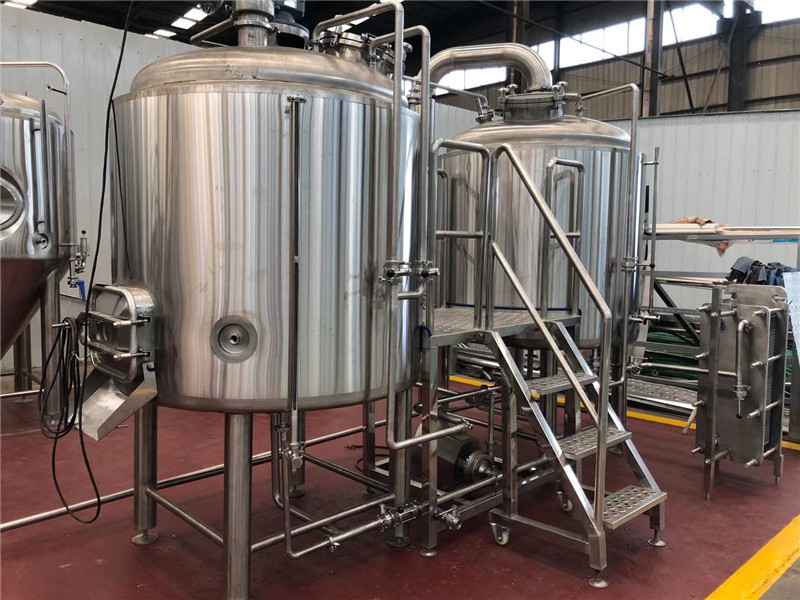

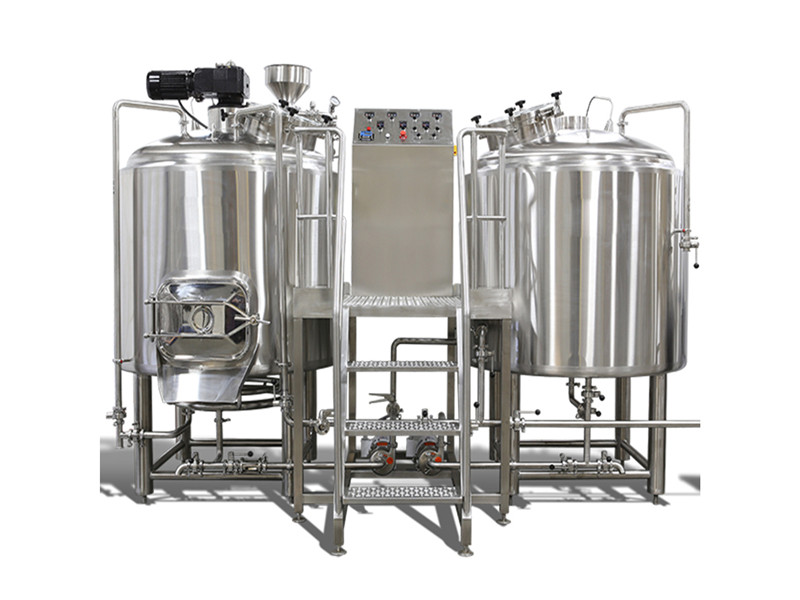

1000L Craft Beer Equipment Mash/lauter tank+kettle/whirlpool tank+hot water tank
2-Vessel Main Features
A typical two-vessel Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups.Next inline is the combination of the Kettle and Whirlpool tanks, Add one Hot water tank.

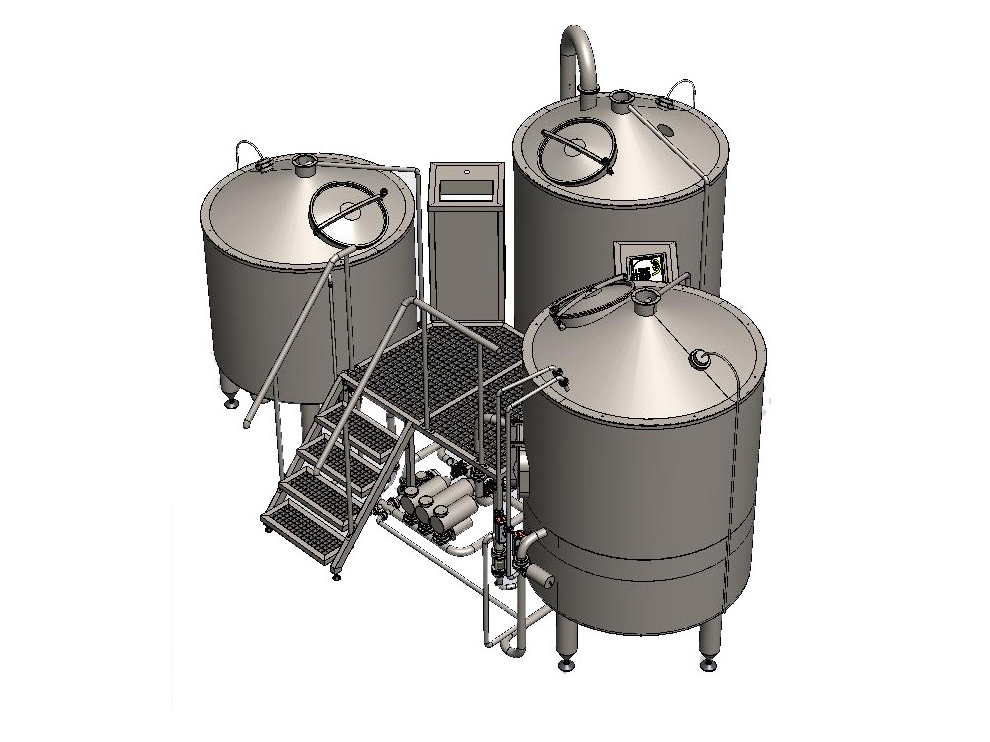

3D Pictures
Configuration
● Regular model:1000L (25% excess capacity)
● 1000L Brewhouse consists of mash tun, lauter tank, kettle tank and whirlpool tank.
● Two Vessles:(Mash/latuer tank & Kettle/whirlpool tank)+Hot water tank
● Steam heating(electrical heating &direct fired heatingis optional for small system )
● All parts of the equipment are made of high quality stainless steel SUS 304 with argon arc welding (Tig welding)
● Insulation: ( PU or Rock wool)
● Lauter tun configures combi-grain raking device and milling sieve plate.
● Mash/ketlle tank is with stirrer device
● Electronic thermometer sensors.
● Spraying ball (Detachable）
● Heating with dimple Jacket ( or electric heating )and stirrer device ensures temperature rise rate and improve
overall system efficiency with avoiding coking.
● The tangent whirlpool design according to the heat concretion subsidence characteristics.
● PLC design of control program meet demand of various process of craft beer.
● Options: Automatic grain removing device (Frequency converting control) bottom door of grain removal.

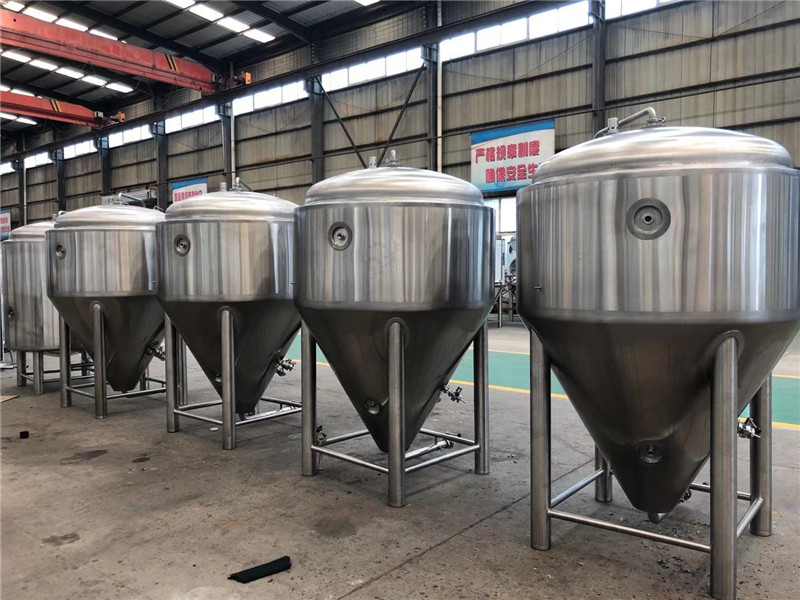

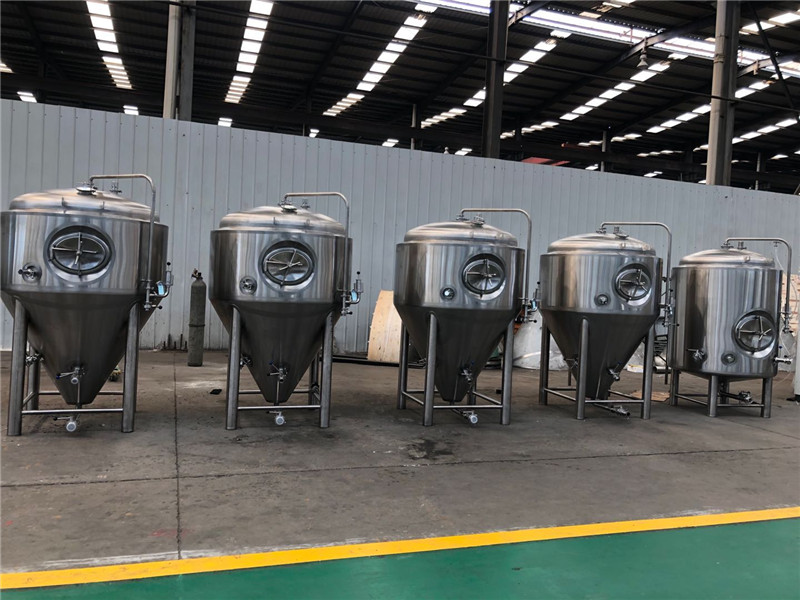

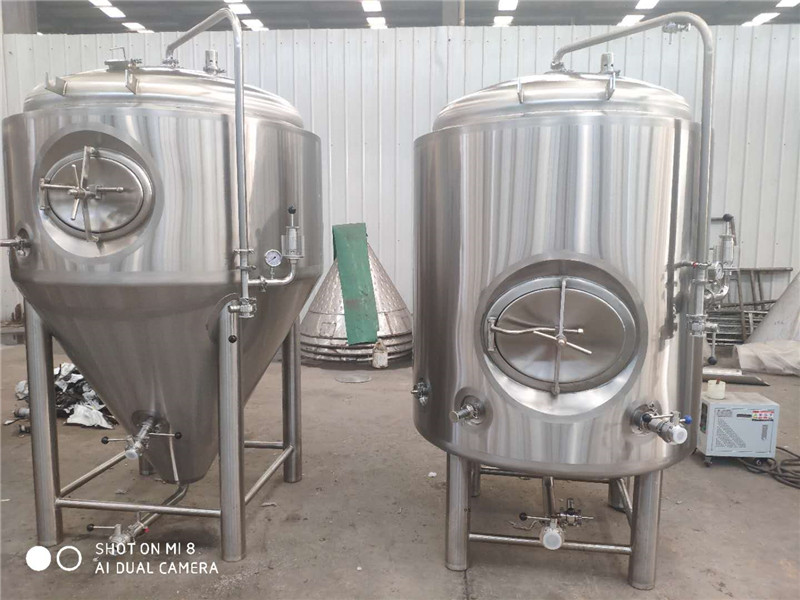

Fermentation & Brite Beer tanks
● The main material: the SUS304 stainless steel;
● Standard model:1000L or 2000L (25% excess capacity);
● Top is stainless steel dished head, bottom is 60°conical design, easy to discharge yeast, 100% TIG welding, clean and polish;
● Design pressure of 0.2MPa, the test pressure 0.4 MPa;
● 3-4 stainless steel leg, height and level can be adjusted;
● Inner jacket thickness 3mm, insulation is Polyurethane (PU),thickness 60-100mm, outer jacket thickness 2mm;Cleaning the inner surfaces, polished to 0.4um;
● Configuring the vacuum valve/pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side or top manhole, 360 °CIP ball;
● Double glycol inlet and outlet, dimple jacket for cooling;
● Racking arm for beer outlet;
● Standard clamp-type hops adding port;
● Electronic thermometer sensor connector;
Glycation Details
1. Inside heating device
2. Upper Interior Lauter Tun
3. ring filtration pipe
4. False Bottom-Back
5. manhole
6. inside stir
7. buffer tank
8. Grain door
9. Feed water mixer
Fermenter Detail
Content Gauge
Inside of FV
Manhole
Racking Arm
Sample Vavle
Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun
Plate heating exchanger
Steam Boiler
Weld Polishing
f.A.Q
1.Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.Is your goods has ISO9001 or CE certificate ?
Yes, all our goods has ISO and CE certificate. All machines are high quality goods.
3.Q: Are you a manufacturer?
We are the manufacturer of beer brewing equipment for more than 10 years.
4.Q: Can you do OEM or ODM?
Yes, we can do.
5.Q: How to control temperature ?
PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
6.Q: Which export port you use?
Commonly we will use Qingdao port, sometime, it can appoint as you like.
7.Q: How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
8.Q: How about the warranty?
All our equipment main part has 10 year quality warranty. And we provide life long time technical support, spare parts and other assistance.
| Output/Brew | 10HL |
| Brew/Week | 6~12 |
| Output/Week | 60~120HL |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/Directly Fired |
| Area Request | >70M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
