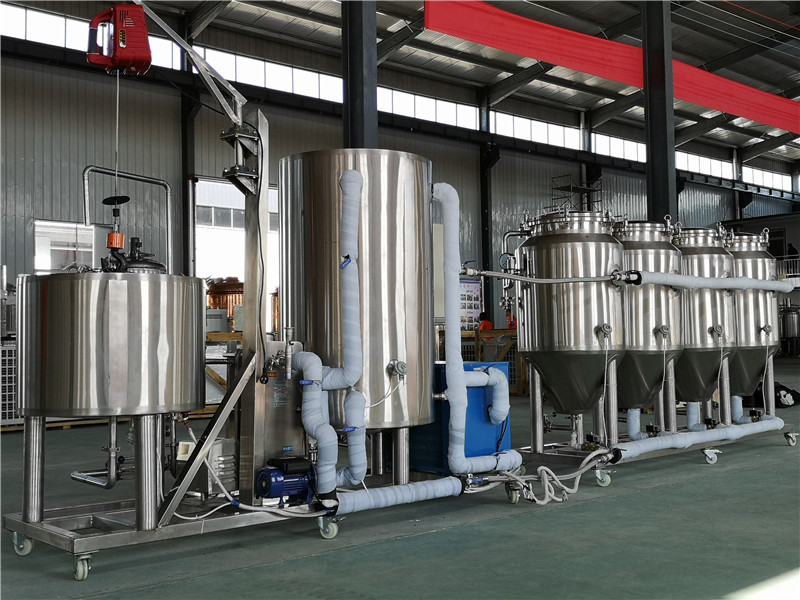

Newly Designed 100L Craft Beer Equipment

50L-100L Small Brew System

Newly Designed 100L Craft Beer Equipment

Most brewery installations in restaurants, bars, and hotels used microbreweries. Supermax microbreweries are installing at the customer's company turn-key solution. Supermax has reached cooperation with many breweries around the world. We can design and manufacture professional containers and systems for breweries, cellar equipment, and other complex breweries. Supermax has decades of experience in beer brewing, manufacturing sanitary stainless steel systems, and integrated automation and control systems.

    products description

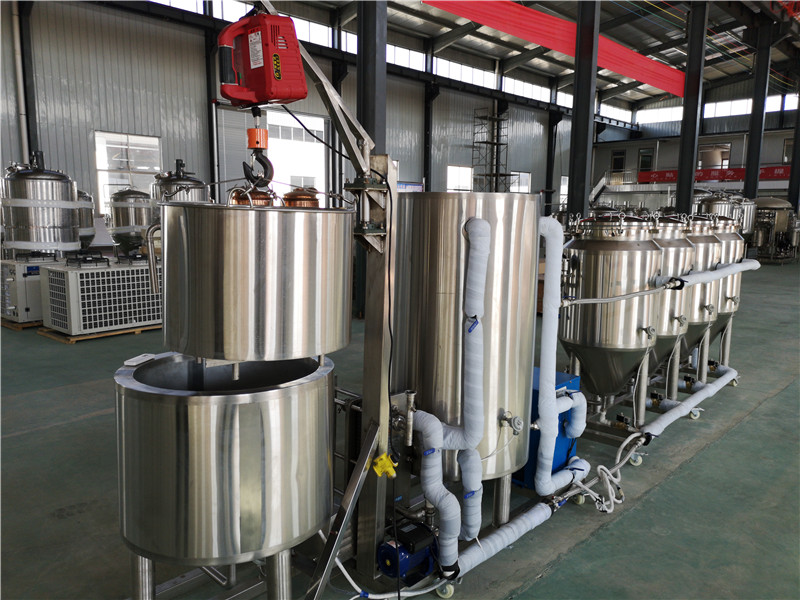

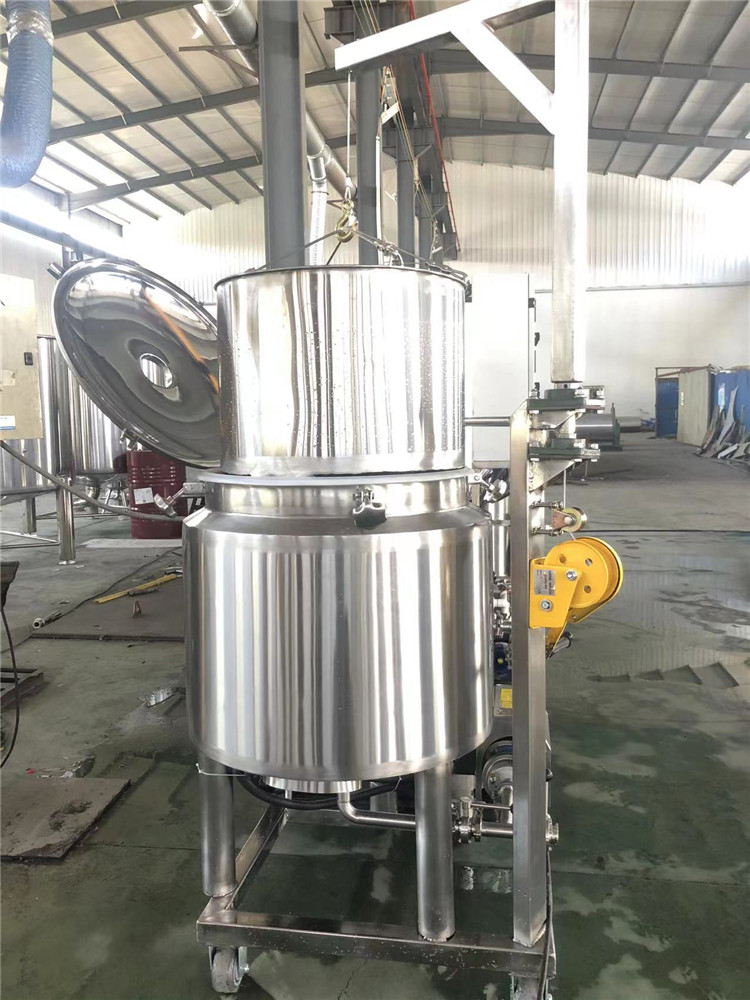

    1x 100L mash/lauter boiling whirlpool combined tank

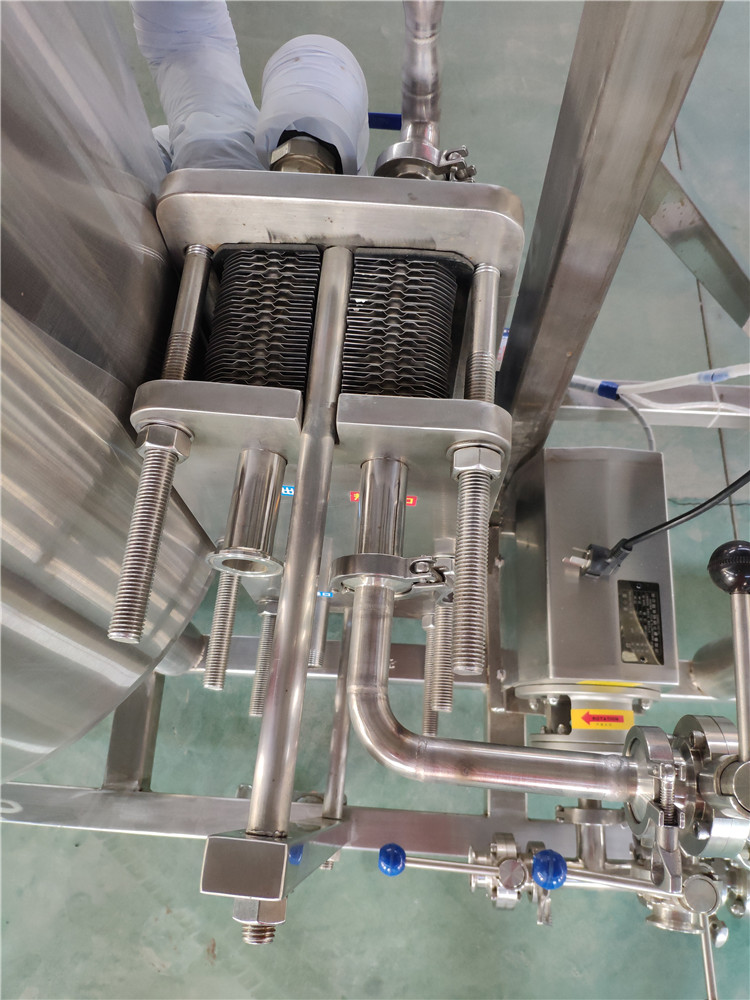

    1x one plate heat exchanger for wort cooling
    1x centrifugal type wort pump

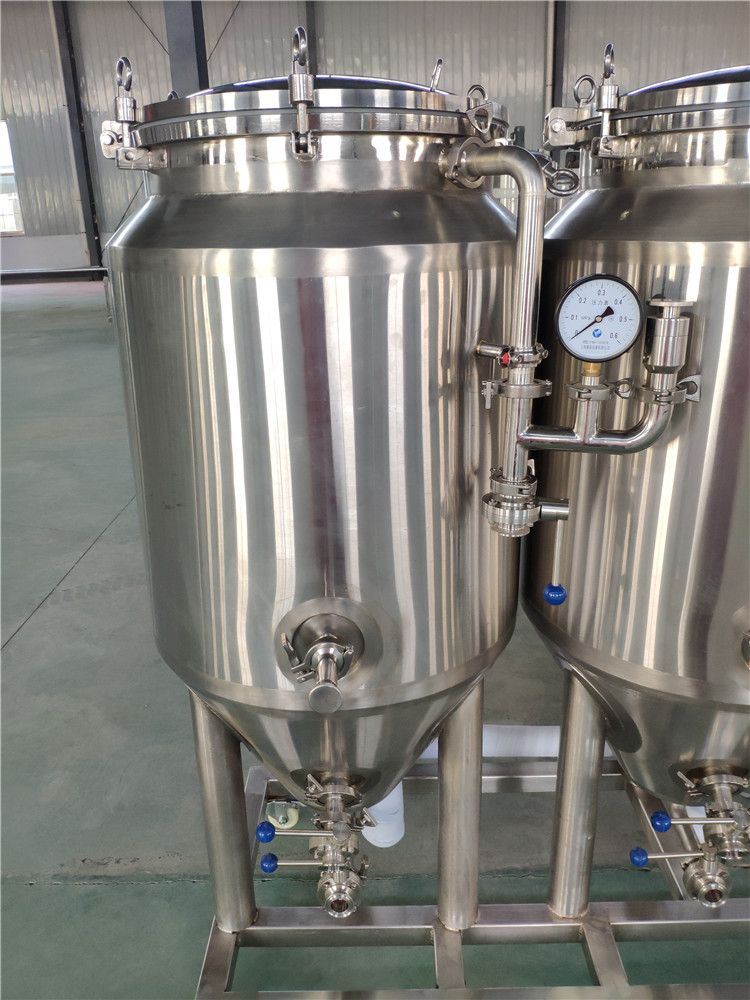

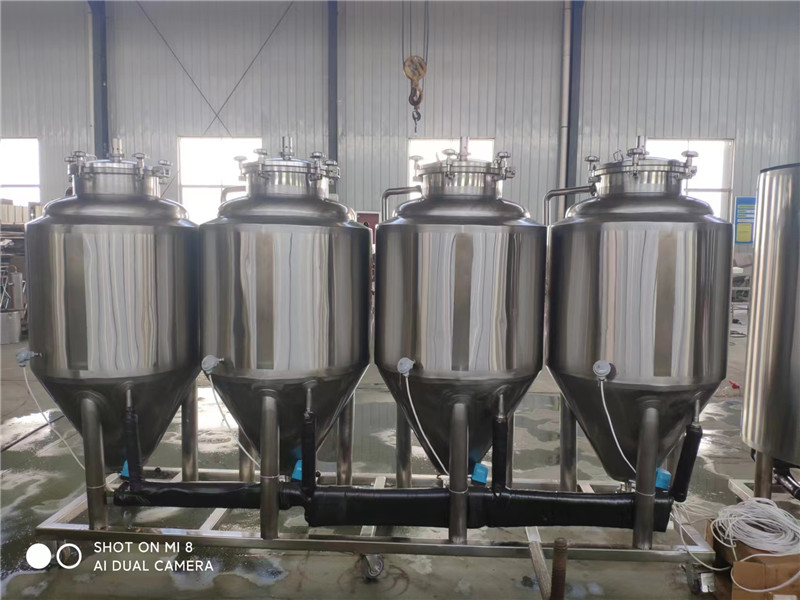

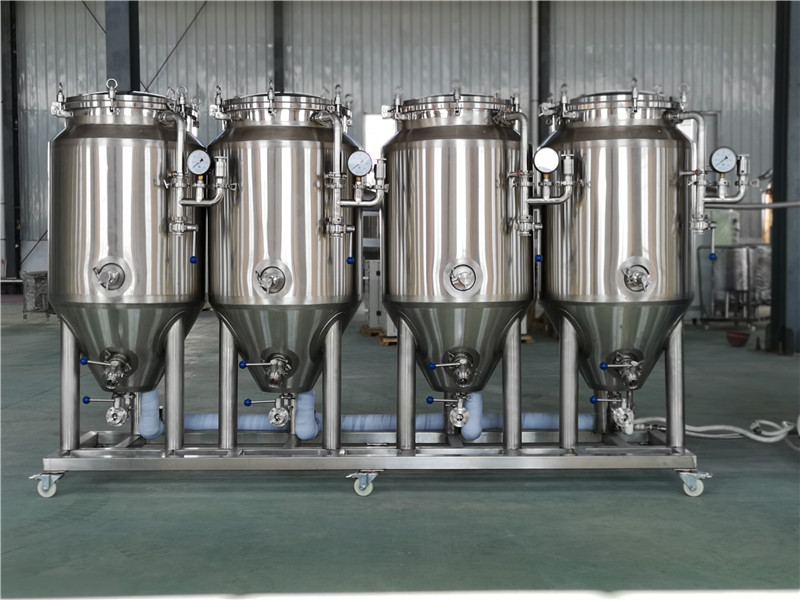

    4x 100L fermentation tank with cooling jacket and insulation

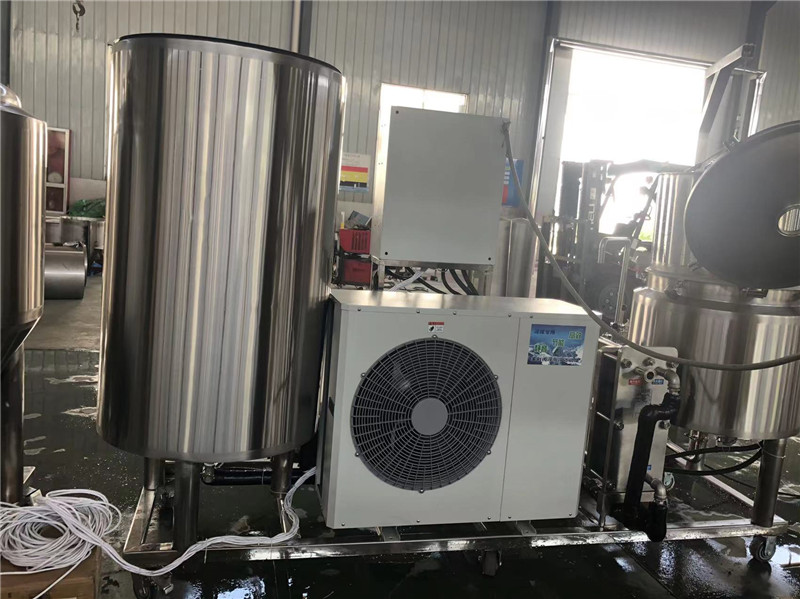

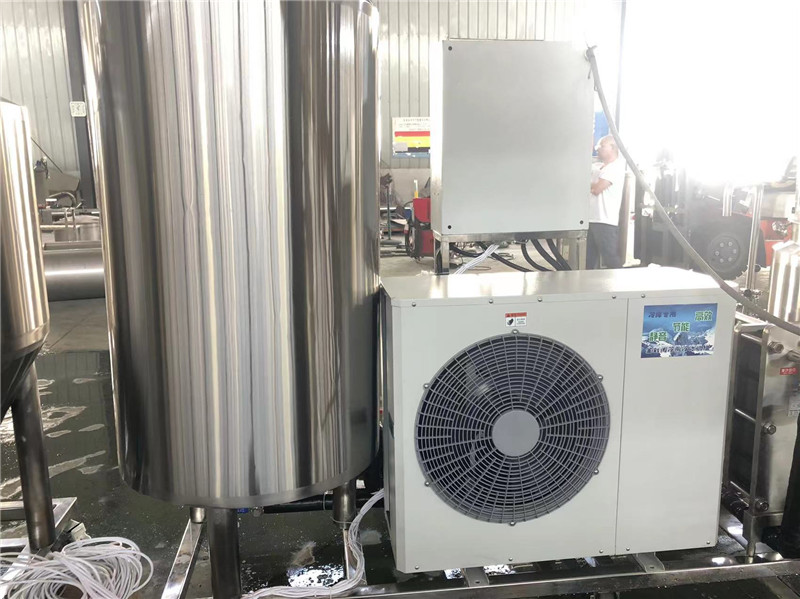

    1x 200Lglycol water tank with refrigerator for cooling fermentation tanks

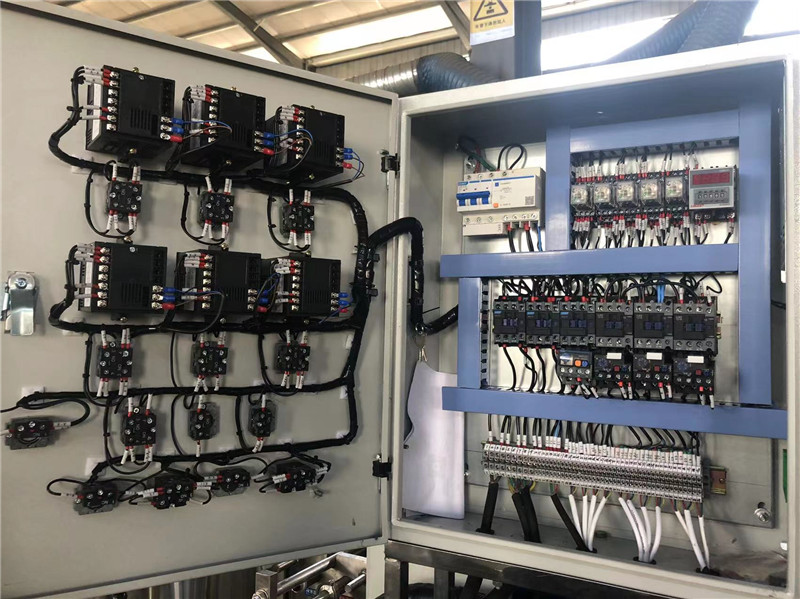

    1x controlling panel for all flow and temperature control, digital panel or plc optional
    All tanks interior shell 3mm, cladding shell 35mm, SUS304;
    Fumigation-free veneer crates packing; All system is packed in one veneer crate.

    products specification

    Net Weight: 800kg
    Dimension: 2670 x800 x2000mm
    Dimension: 2400 x900 x2000mm
    Installed area:8 m2

    detail picture

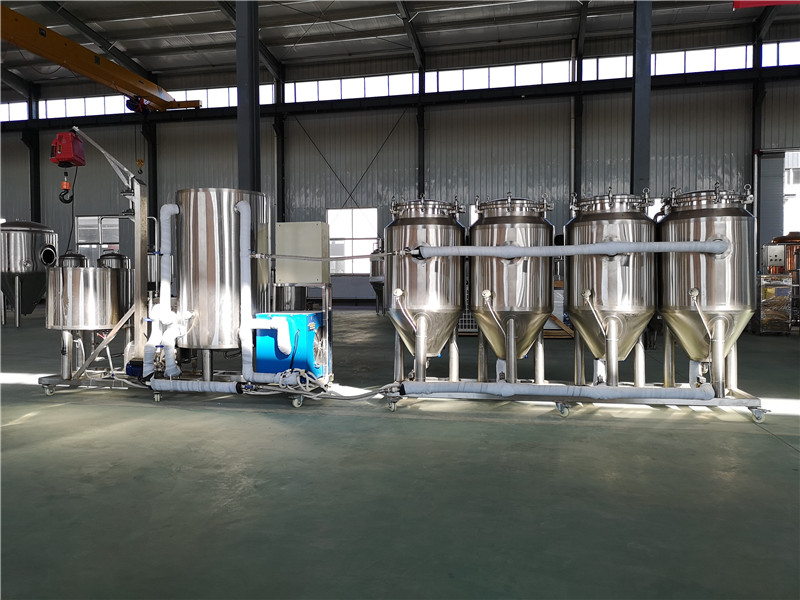

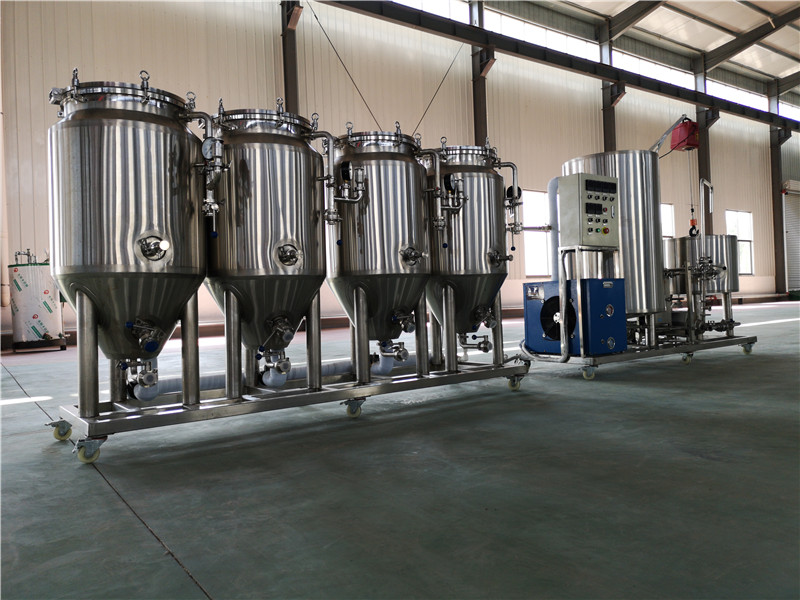

    100L Small brew System (4)655100L Small brew System (1)u7b
    100L Small brew System (2)xly100L Small brew System (3)pk4
    100L Small brew System (5)xux100L Small brew System (8)w8t
    100L Small brew System (6)41k100L Small brew System (9)2ar100L Small brew System (7)sij
    Item Production capacity Volume in US Gallon Heating area Tank diameter Height
    SP-50 50L/day 14US Gallon 0.15㎡ 550mm 1500mm
    SP-100 100L/day 26US Gallon 0.25㎡ 650mm 2000mm
    SP-200 200L/day 53US Gallon 0.25㎡ 850mm 2200mm
    SP-300 300L/day 79US Gallon 0.3㎡ 950mm 2500mm
    SP-500 500L/day 132US Gallon 0.5㎡ 1160mm 2800mm
    SP-600 600L/day 158US Gallon 0.6㎡ 1220mm 2350mm
    SP-700 700L/day 185US Gallon 0.7㎡ 1250mm 2380mm
    SP-800 800L/day 212US Gallon 0.8㎡ 1260mm 2400mm
    SP-1000 1000L/day 264US Gallon 1.0㎡ 1360mm 3000mm
    SP-1500 1500L/day 396US Gallon 1.5㎡ 1520mm 2900mm
    SP-2000 2000L/day 528US Gallon 2.0㎡ 1760mm 3150mm
    SP-2500 2500L/day 660US Gallon 2.5㎡ 1800mm 3200mm
    SP-3000 3000L/day 792US Gallon 3.0㎡ 1860mm 3800mm
    SP-5000 5000L/day 1320US Gallon 5.0㎡ 2260mm 4400mm
