500L Beer Brewhouse Equipment
01

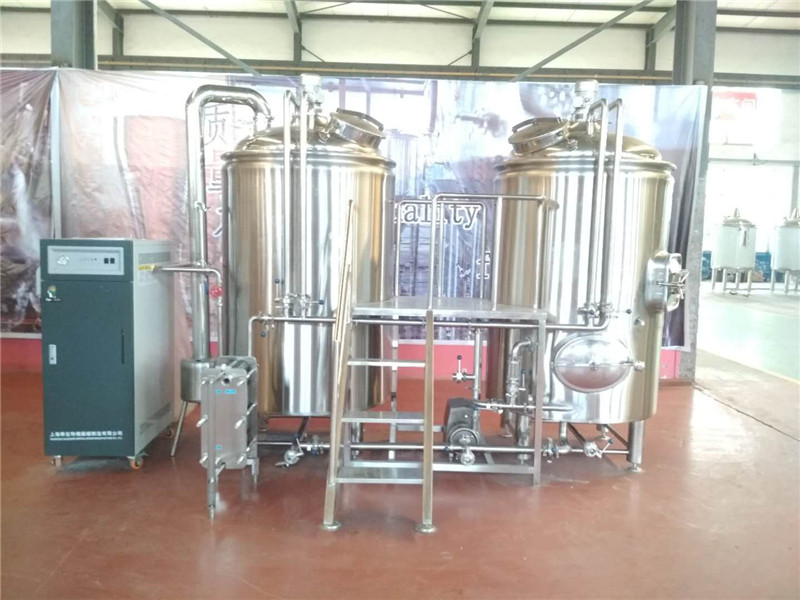

5BBL beer brewhouse of mash/lauter tank and kettle/whirlpool tank add hot water tank
2-Vessel+HWT Main Features
A two-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example: Mash tun/ Lauter tank and kettle/whirlpool tank+Hot water tank.

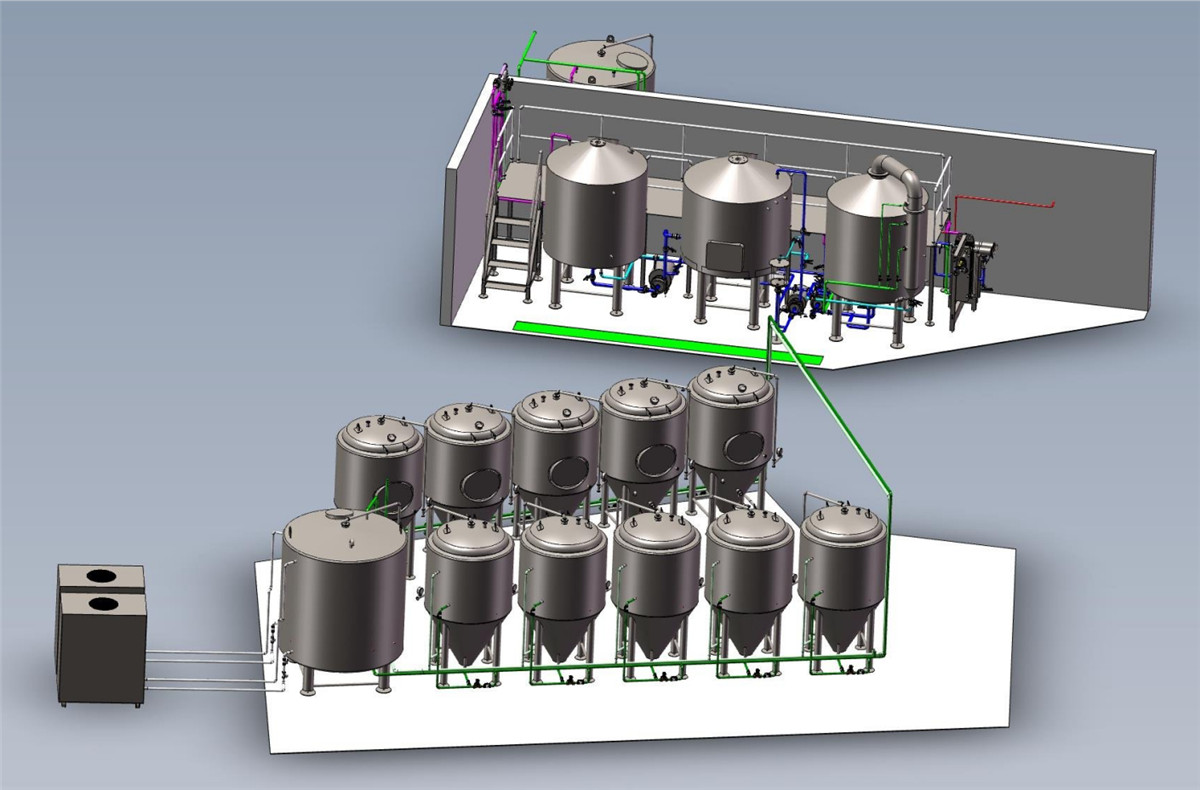

3D drawing of brewery
Configuration
5BBL micro brewery 2vessels brewhouse+8BBL hot water tank
1. SUS304 Grain Miller
2. 5BBL Mash/Lauter tank
3. 5BBL Kettle/whilrpool tank
4. 8BBL Hot water tank
5. 8㎡ Plate heating exchanger
6. Wort Hose of Food grade and work platform
7. 20L Yeast adding tank
8. 5BBL Beer Fermentation tanks or 10BBL Beer Fermentation tanks
9. 5BBL Bright Beer tanks or 10BBL Bright Beer tanks
10. 5HP Glycol Chiller
11. 10BBL Clycol tank( Ice water tank)
12. 50L CIP cart
13. Control cabinet with touch screen, Siemens, ABB,Schneider international brand electric parts.
14. Match semi-automatic keg filler and washer machine, Bottle filler and capper machine, cans filler and seal machine (Optional)
15. Heating ways: Steam heating, electric heat coil heating, direct fire heating.
The service includes
Complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.
Glycation Details
Upper Interior Lauter Tun
False Bottom-Back
manhole
inside stir
buffer tank
Grain door
Feed water mixer
Fermenter Detail
Content Gauge
Inside of FV
Manhole
Racking Arm
Sample Vavle
Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun
Plate heating exchanger
Steam Boiler
Weld Polishing
F.A.Q
1.Which countries your products are exported to?
Our products are sold all over the world and with related certifications CE UL.
2.Q: Are you a manufacturer?
We are the manufacturer of beer brewing equipment for more than 10 years.
3.Q: Can you do OEM or ODM?
Yes, we can do.
4.Q: How to control temperature ?
PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
5.Q: Which export port you use?
Commonly we will use Qingdao port, sometime, it can appoint as you like.
6.Q: How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
7.Q: How about the warranty?
All our equipment main part has 10 year quality warranty. And we provide life long time technical support, spare parts and other assistance.
| Output/Brew | 5 bbl |
| Brew/Week | 2~6 |
| Output/Week | 10~30 bbl |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Electric/Steam |
| Area Request | >45M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
