2000L Micro Beer Equipment
0102030405

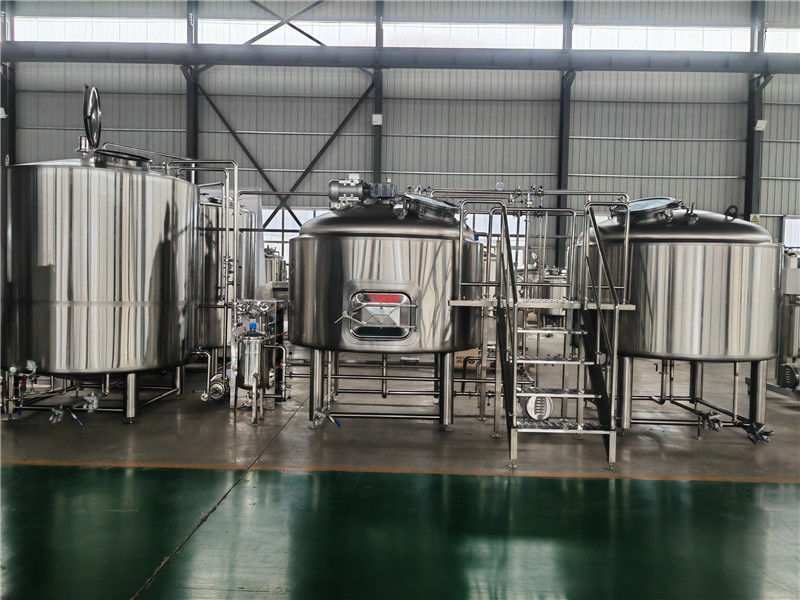

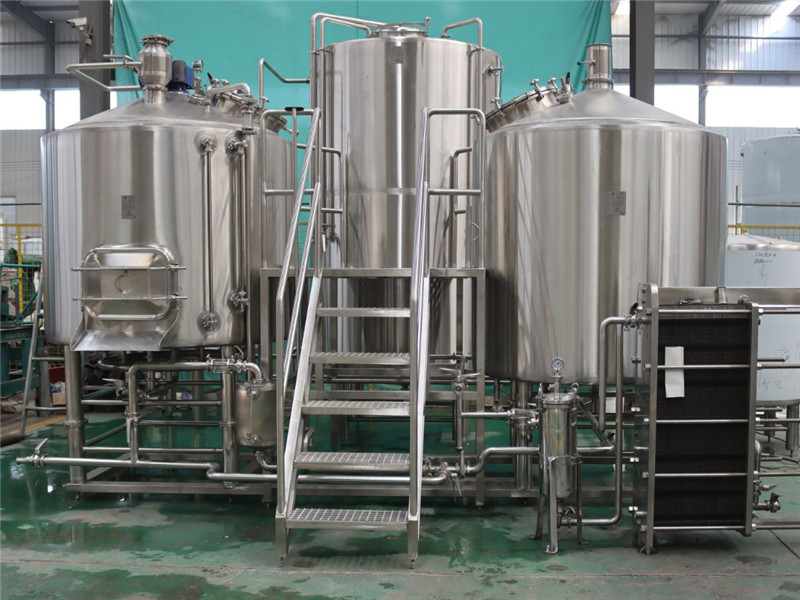

2000L Brewery Equipment
Main Features
A two-vessel 2000L brewhouse add one 4000L hot water tank. For example: Mash tun/lauter tank+kettle/whirlpool tank+hot water tank
Configuration
1)All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2)Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
7) We produce our commercial brewing equipment to the absolute highest standard – because the quality of equipment can really make a huge difference to your product – and overall success of your brewery.

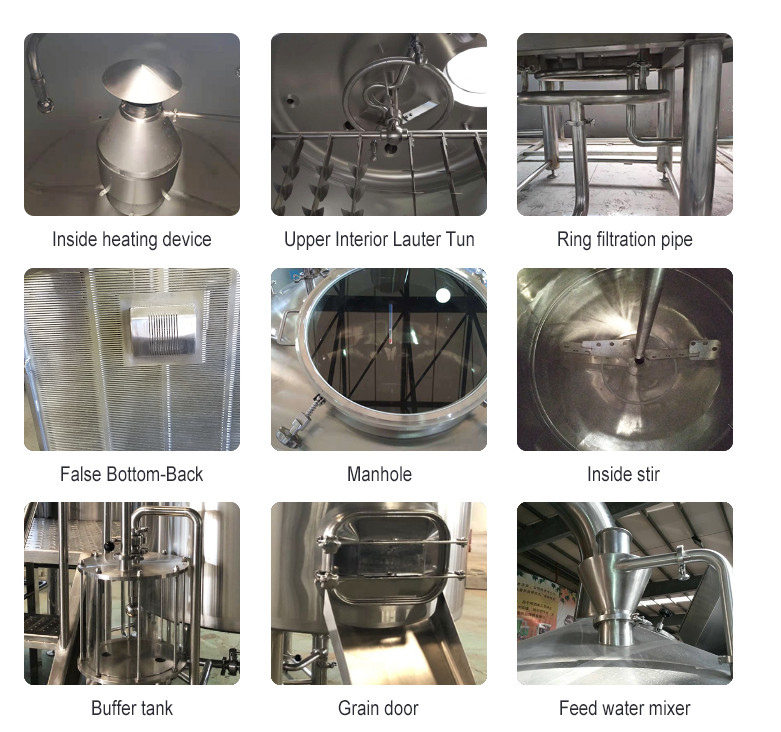

Mash/lauter tun:
Mash lauter tun w/ 30% head space.
Top glass manway with logo options.
Hot/cold liquor blending pre grist hydrator.

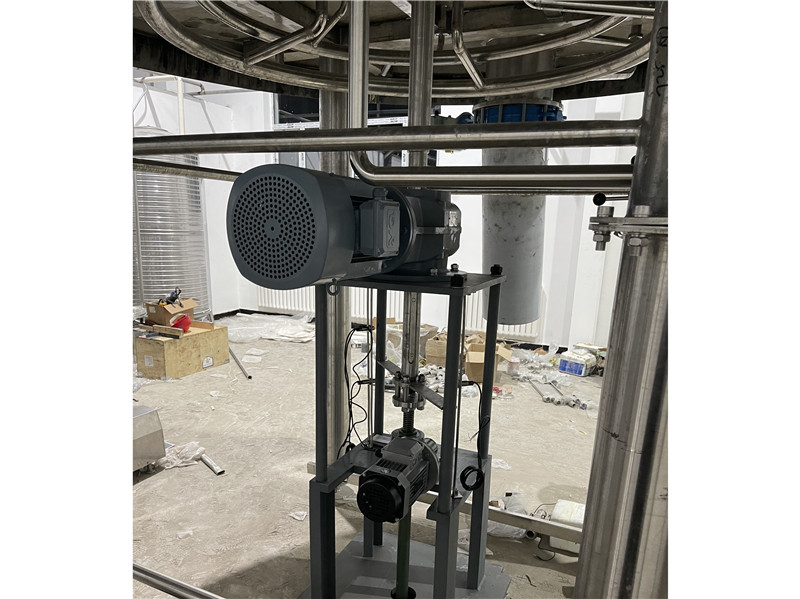

Motorized VFD reversible rakes & grain plow to aid with grain out.
Side steam jacket with push button heating control.
Internal LED lighting.

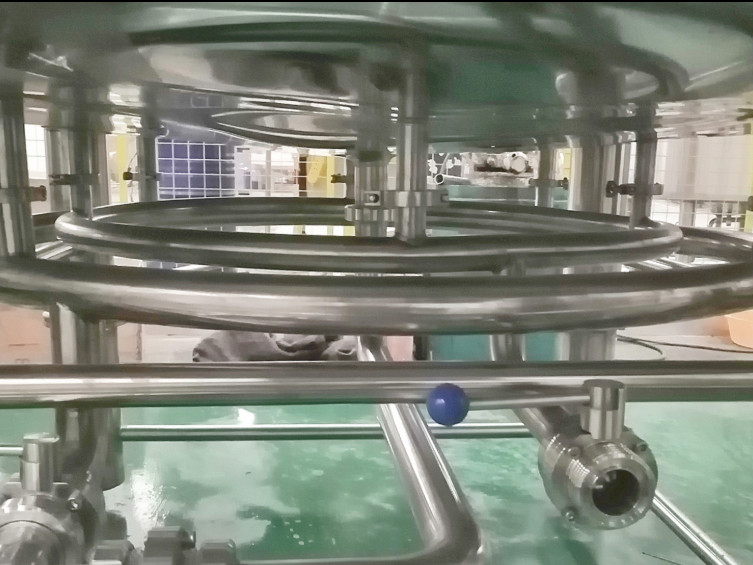

Sparge ring and vorlauf assembly.
Vorlauf sight glass.
False bottom – wedge wire. (3mm)
Multiple wort drain ports.
Thermo-well and PT100 Thermocouple.
Multiple CIP under flush ports.
20L SUS304 closed wort grant option.
CIP spray balls – 360⁰ coverage.
SUS304 Lifting Lugs.
4 SUS304 legs with levelling foot pads
Kettle/whirlpool tank:
Kettle/whirlpool combined vessel w/ 40% head space.
Top glass manway with logo options.
Bottom, side and top steam jackets with push button controls.
Internal LED lighting.
Tangential wort inlet.
5″ side wort drain, behind trub baffle.
2″ drain outlet.
CIP spray balls – 360⁰ coverage.
Steam Condenser Stack Kettle steam condenser.
Dual water condensing/suction fan.
SUS304 Lifting Lugs.
4 SUS304 legs with levelling foot pads.
Glycation Details

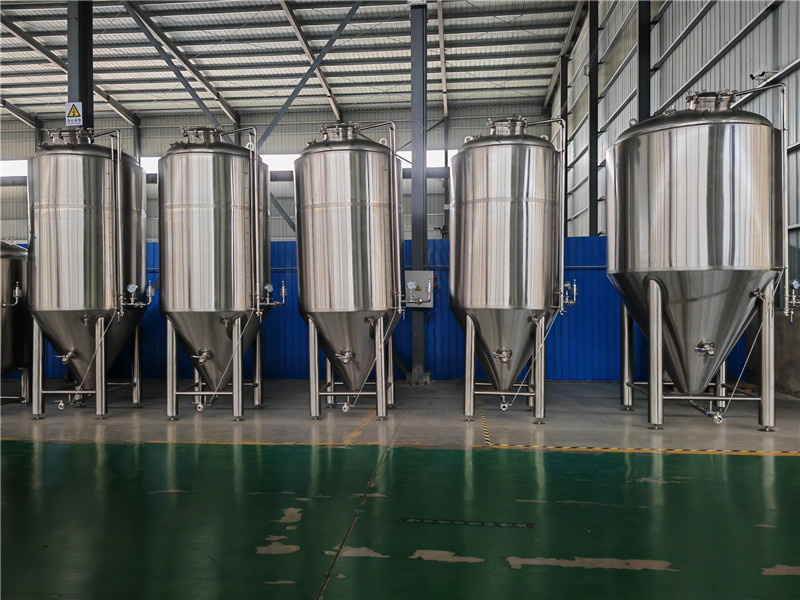

Fermenter Detail
Content Gauge
Inside of FV
Manhole
Racking Arm
Sample Vavle
Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun
Plate heating exchanger
Steam Boiler
Weld Polishing
| Output/Brew | 20HL |
| Brew/Week | 6~12 |
| Output/Week | 120~240HL |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/Directly Fired |
| Area Request | >120M2 |
| Brewmaster |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
