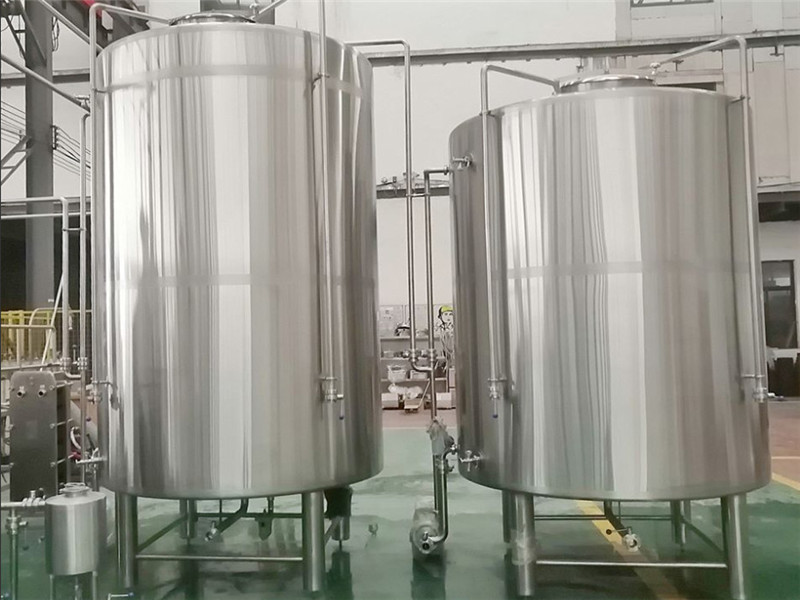

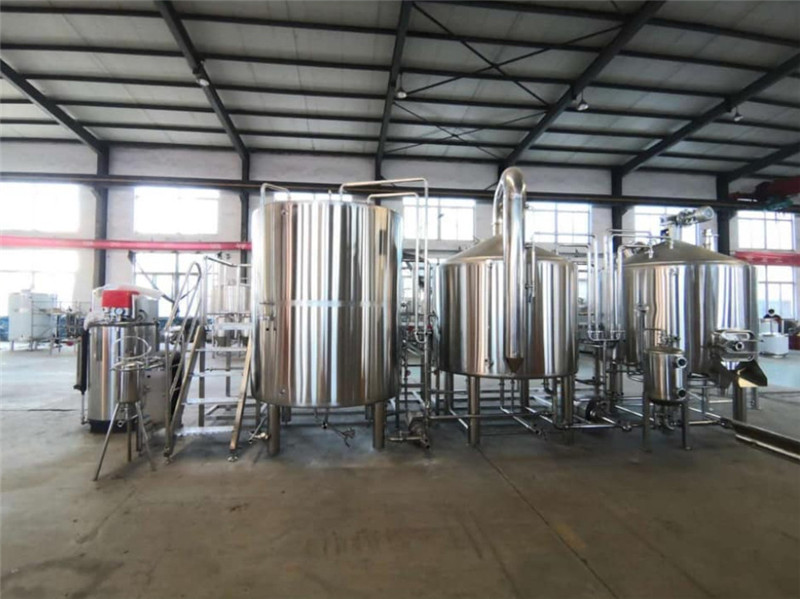

20BBL 2vessels Brewhouse with 40BBL Hot Water Tank for Brewery
Our newest and most popular product in the American market - the 20BBL American saccharification/filter tank, 20BBL boiling/suspension tank, and 40BBL hot water tank combination.
The 20BBL American saccharification/filter tank is specially designed to provide optimum conditions for the saccharification and filtration process. It ensures the production of high-quality beer with its advanced technology and precise control mechanisms. The 20BBL boiling/suspension tank is equipped to handle the boiling and suspension process with ease and efficiency.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Use Cases / Where It Fits
Regional Craft Breweries
Scaling from pilot/proto-brewery to wholesale distribution (keg, can, bottle)
Contract / Co-Pack Brewing Facilities
Requiring repeatable consistency across styles (lager, IPA, stout, wheat)
Brewery Expansions
Adding a dedicated 50HL line alongside existing smaller kit
Multi-Shift Production Sites
Where parallel mashing + lautering + boiling increases daily yield vs. 2/3-vessel layouts
Core Specifications
| Section | Item | Spec / Detail |
| Brewhouse | Mash Lauter Tun | 20BBL effective, steam jacket (bottom + side), variable-speed agitator, grist hydrator |
| Kettle Whirlpool Tun | 20BBL laser-cut V-wire false bottom (gap 0.7mm), motorized grain rake + spent-grain door | |
| Heat Exchanger | Dual-stage plate type, wort ⇄ glycol & RL water recovery | |

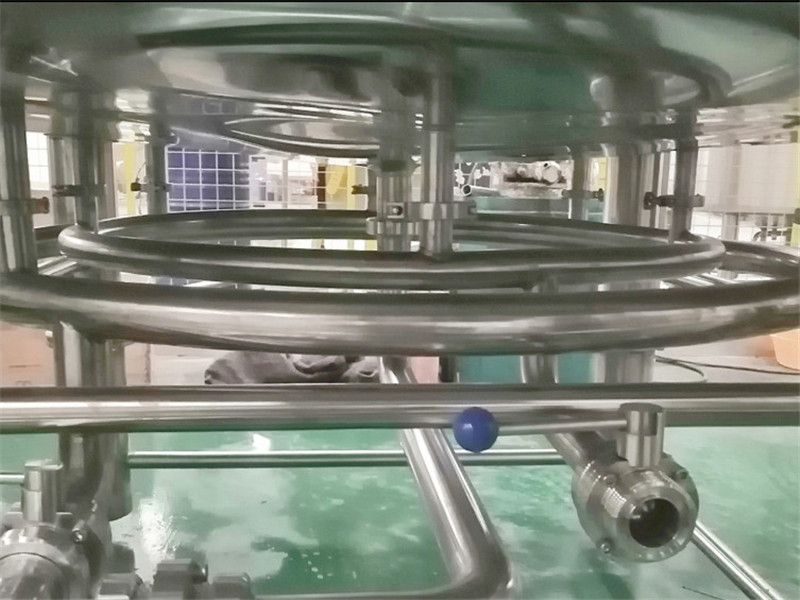

| Platform | SS304 non-slip grating, integrated hard piping & sanitary valves | |

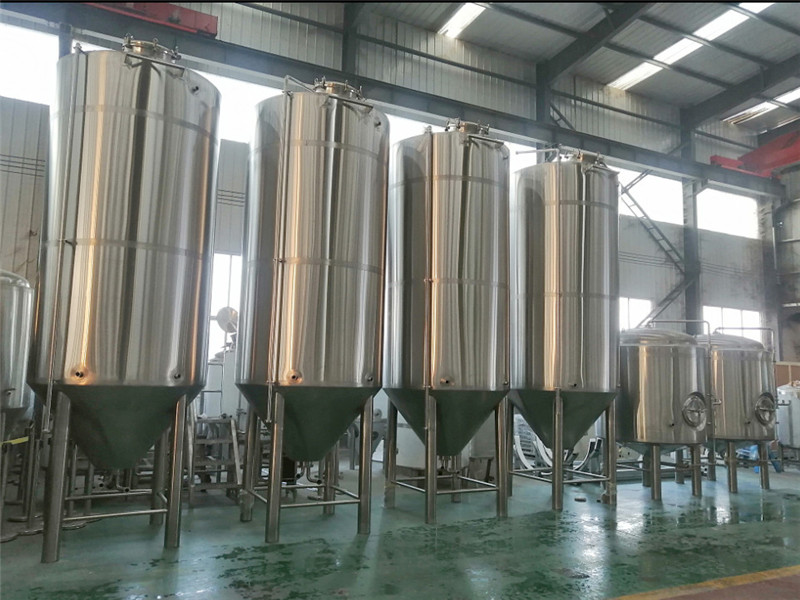

| Cellar | Fermentation Tank | 5000L / 10000L conical uni-tank, 60° cone, glycol dimple jacket (cylinder + cone), top/side manway, rotating racking arm, sample valve, PRV, dry-hop port |
| Bright Beer Tank | 5000L / 10000L, glycol jacketed, carbonation stone ready, 360° CIP spray ball | |
| Materials | Interior SS304 (mirror polish Ra≤0.6μm), exterior SS304 brushed, PU insulation 80–100mm | |
| Controls | Siemens/Mitsubishi PLC + HMI touchscreen (auto temp/PID/valve sequencing); semi-auto PID panel optional | |
| Utilities Match | Pairs with your 30HP glycol chiller + electric/steam boiler (we supply matching spec) |
Product Features
SUS304 Full Stainless
All contact surfaces food-grade SUS304; 3mm+ vessel shell for commercial durability.
PLC Touchscreen Control
0-inch HMI with programmable step mashing, recipe storage, and ±0.5°C precision.
Steam Jacketed Heating
Dimple-plate jackets on both vessels — fast ramp, even heat, 8–10% boil-off rate.
Combined Mash/Lauter Tun
One tank does both — saves footprint, reduces cost, still achieves 85%+ mash efficiency.
Integrated Whirlpool Kettle
Tangential inlet for clean trub separation + direct knockout via sanitary plate heat exchanger.
Low Labor — 1-Brewer Operation
Single operator runs mashing, lautering, boiling, and knockout from one control panel.
Accessories
•Craft beer is no need filtration which will keg filling for quick consumption
•Plate-Frame or Candle type DE
•Keg filling and rinsing machine
•Semiauto bottling machine with rinsing, filling, capping, labeling, etc
•Flash pasteurizer or tunnel pasteurizer is available
•Portable or fixed CIP system for cleaning the tanks
•Steam boiler for brewhouse heating
•Water treatment for brew water
•Oil-free air compressor
product Advantage
01
Combined Mash/Lauter Tun + Kettle/Whirlpool Tank design eliminates one tank vs. 3-vessel systems — save 25–30% on upfront brewhouse cost without sacrificing output.
02
Full SUS304 stainless steel construction on all product-contact surfaces. 3mm–4mm shell thickness on hot-side vessels. SUS316L optional on kettle cladding.
03
Siemens PLC with 10-inch color HMI touchscreen. Programmable step-mash profiles, PID-controlled steam or direct-fire heating with ±0.5°C accuracy
04
Dimple-plate or half-pipe steam jackets on both vessels. 20 BBL strike water to mash-in temperature in under 15 minutes. Wort kettle boil-off rate 8–10% per hour. Optional electric heating elements for locations without boiler infrastructure.
05
Kettle/whirlpool combination vessel with tangential inlet. Clean trub cone separation. Paired with a sanitary plate heat exchanger — knockout 20 BBL from boiling to pitching temperature in under 45 minutes. Ready-to-pitch wort, batch after batch.
06
Add fermentation vessels, bright tanks, a dedicated hot liquor tank, grain handling, or CIP cart later. The 2-vessel platform is the entry point to a full turnkey brewery — scale up as demand grows, no re-engineering required.
Product details
10 (5)
9 (6)
7 (10)
glass manhole
frequently asked questions
1
Q: Is the equipment fully automatic or semi-automatic?
A: The mashing process can be either semi-automatic or fully automatic with PLC intelligent control. Temperature control is fully automatic.
2
Q:How many types of beer can one set of equipment brew? Can it make IPA, stout, and fruit beer?
A: One set of equipment can brew all types of craft beer: lager, IPA, stout, wheat beer, fruit beer, and sour beer. Only the raw materials, recipe, and fermentation parameters need to be adjusted.
3
Q: How long is the warranty? How is after-sales service handled overseas?
A: Stainless steel tanks have a 5-year warranty, electronic components and auxiliary equipment have a 1-year warranty; overseas, we provide 24/7 online English after-sales service, fast global shipping of parts, and can connect with local repair partners.
4
Q: Is steam heating necessary, or can I use electric heating?
A: Steam heating is recommended for 5000L+ systems because it provides even heat distribution, faster boil times, and better energy efficiency. Electric heating is possible but may require significant power capacity and longer heat-up times.
5
Q: Can the equipment be upgraded and expanded to increase production capacity later?
A: We support modular expansion. Fermentation tanks can be added directly, and the saccharification system can be upgraded without replacing the entire equipment. The initial investment is reusable, reducing upgrade costs.
6
Q: Can this system be expanded later?
A: Yes. The brewhouse is designed with extra I/O capacity in the control system, Reserved interface for additional fermenters, bright tanks, filtration, and packaging lines.
7
Q: Does the system support advanced brewing techniques?
A: Absolutely. Step-infusion mashing, decoction, hop-stand whirlpool, and dry hopping are all supported. The whirlpool and kettle geometry are optimized for wort clarity and hop utilization.
8
Q: What certifications are available?
A: Our brewery equipment can be built to CE, PED, ASME standards, with full pressure test reports and material certificates for EU, UK, US, and AU markets.
9
Q: How do you ensure hygiene and product safety?
A: All tanks are TIG welded, pickled and passivated, with mirror-polished interiors (Ra ≤ 0.6 μm). CIP systems cover every process line, minimizing manual cleaning and contamination risks.
10
Q: Can you integrate this brewery with my existing utilities?
A: Yes. We design the brewhouse and cellar to match your current glycol chiller, steam boiler, water treatment, and electrical supply, avoiding unnecessary upgrades.
