Wine/Distill/kombucha System
01

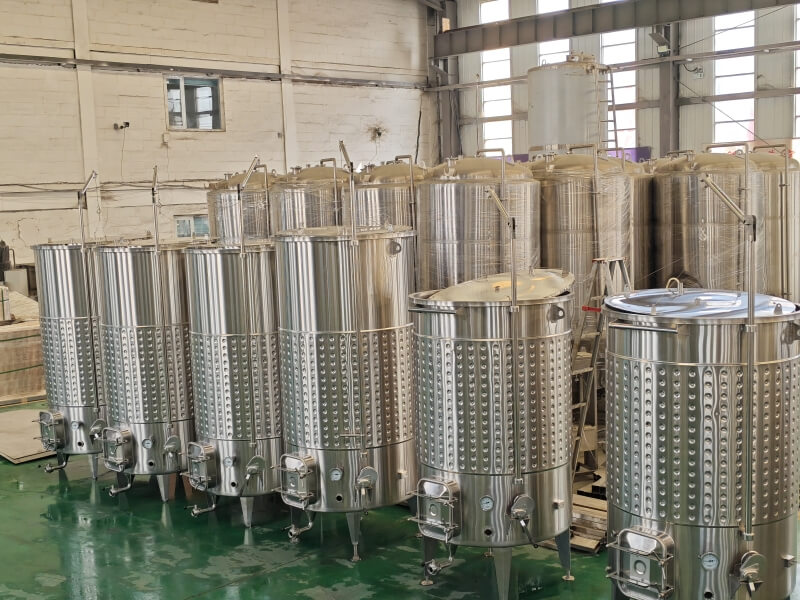

2000L Floater Fermentation Tank Variable Capacity Fermenter Tank Wine Floating Fermenter With Floating lid
Introductions
|
No |
material |
Size |
Cooling |
Ref. Size |
Thickness |
Bottom shape |
Remark |
|
1 |
304 |
1m³ |
2m³ |
φ1100*2200 |
t2.0mm |
Slop Flat Bottom |
atmospheric |
|
2 |
304 |
1.5m³ |
2.4m³ |
φ1300*2200 |
t2.0mm |
Slop Flat Bottom |
atmospheric |
|
3 |
304 |
2m³ |
4m³ |
φ1300*2600 |
t2.0mm |
Slop Flat Bottom |
atmospheric |
|
4 |
304 |
3m³ |
5㎡ |
φ1600*2600 |
t2.0mm |
Slop Flat Bottom |
atmospheric |
|
5 |
304 |
5m³ |
5㎡ |
φ1600*3500 |
t2.5mm |
Slop Flat Bottom |
atmospheric |
|
6 |
304 |
5m³ |
5m³ |
φ1900*3000 |
t2.5mm |
Slop Flat Bottom |
atmospheric |
|
7 |
304 |
6m³ |
5.5㎡ |
φ1770*3500 |
t2.5mm |
Slop Flat Bottom |
atmospheric |
|
8 |
304 |
7.5m³ |
6.2㎡ |
φ2000*3500 |
t2.5mm |
Slop Flat Bottom |
atmospheric |
|
9 |
304 |
8m³ |
6.4㎡ |
φ2050*3500 |
t2.5mm |
Slop Flat Bottom |
atmospheric |
|
10 |
304 |
10m³ |
9.8㎡ |
φ2100*4400 |
t2.5mm/3mm |
Slop Flat Bottom |
atmospheric |
|
11 |
304 |
12.5m³ |
13㎡ |
φ2100*4900 |
t2.5mm/3mm |
Slop Flat Bottom |
atmospheric |

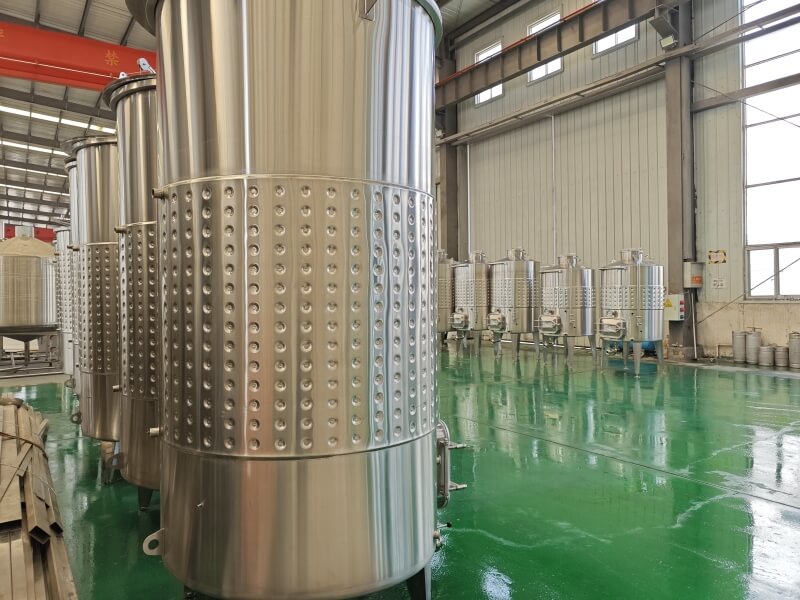

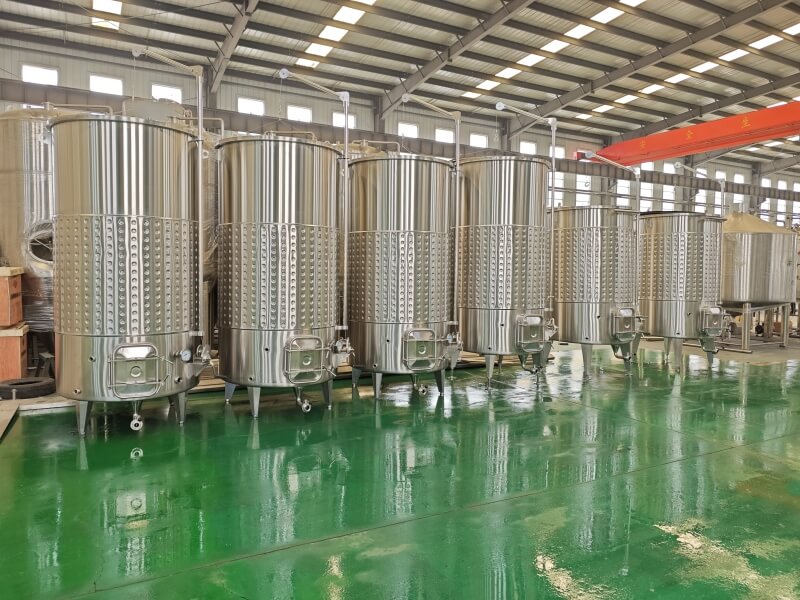

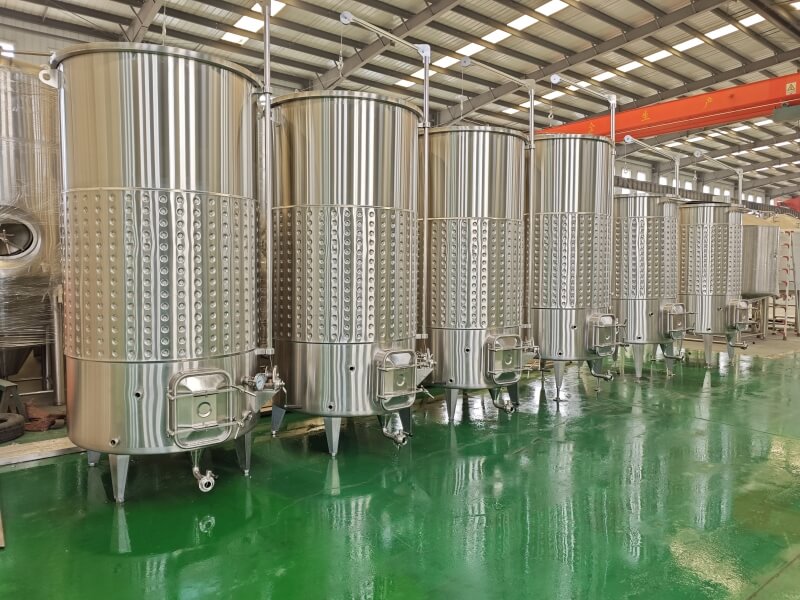

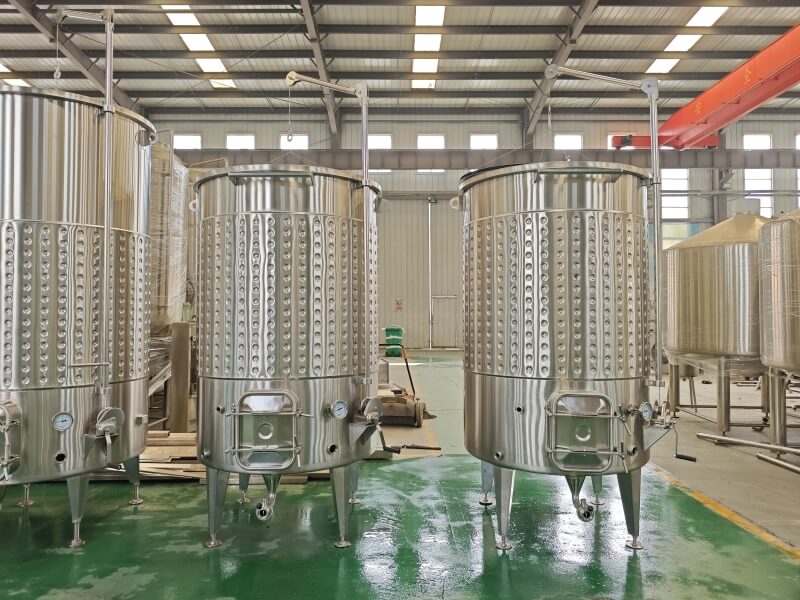

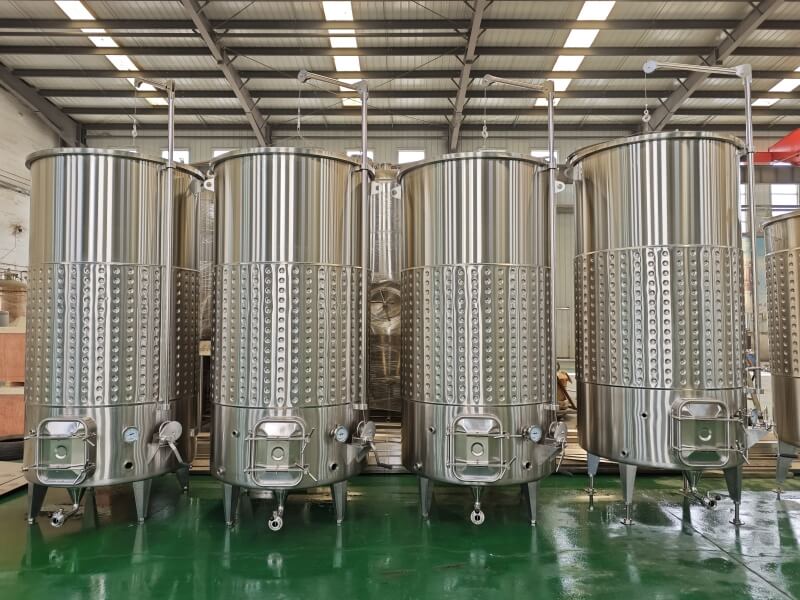

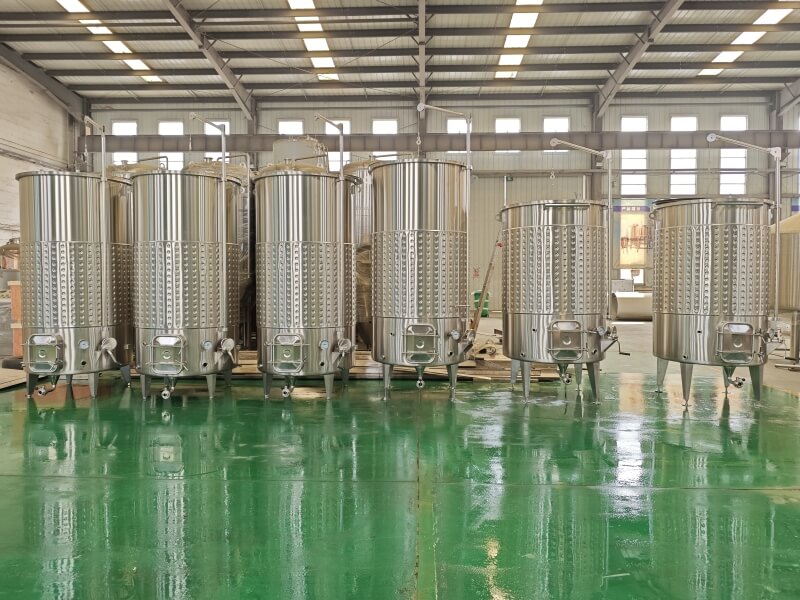

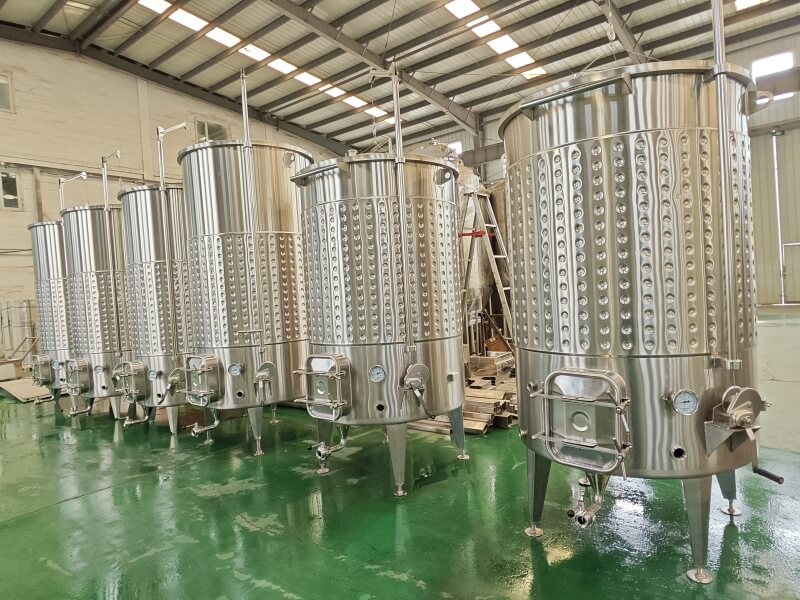

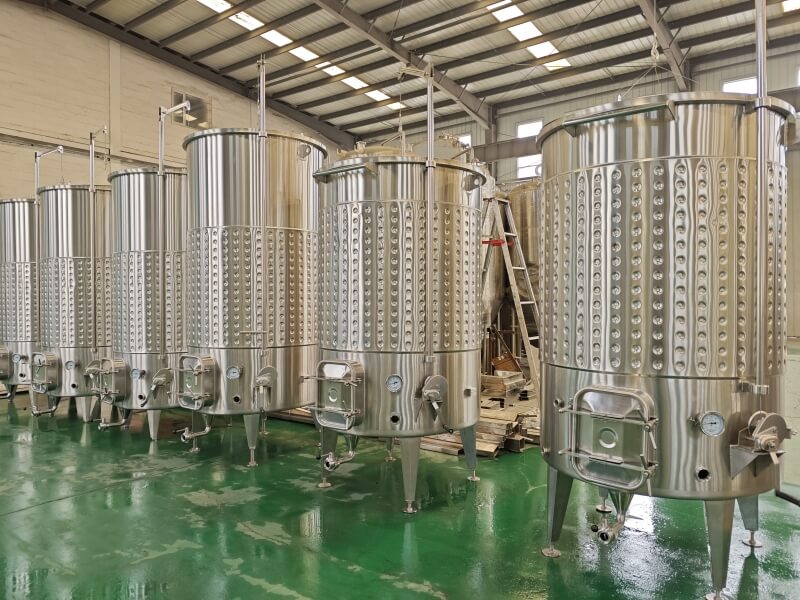

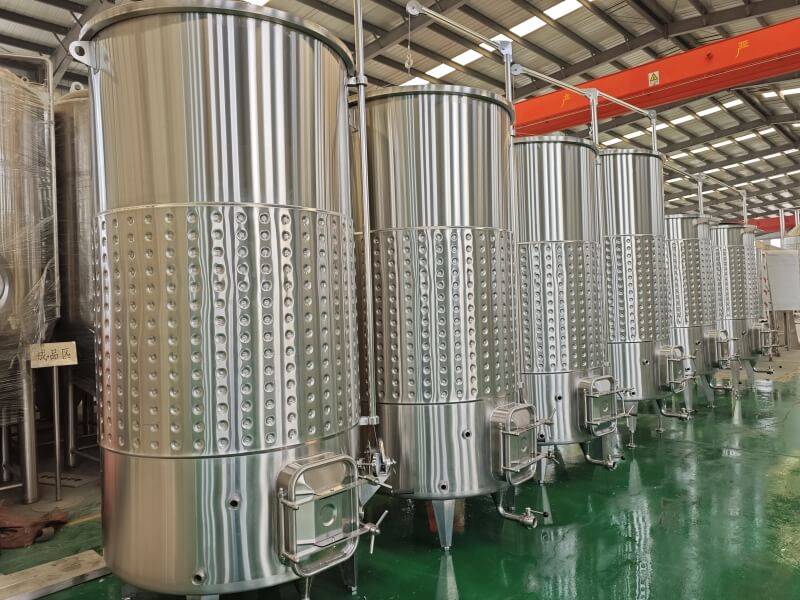

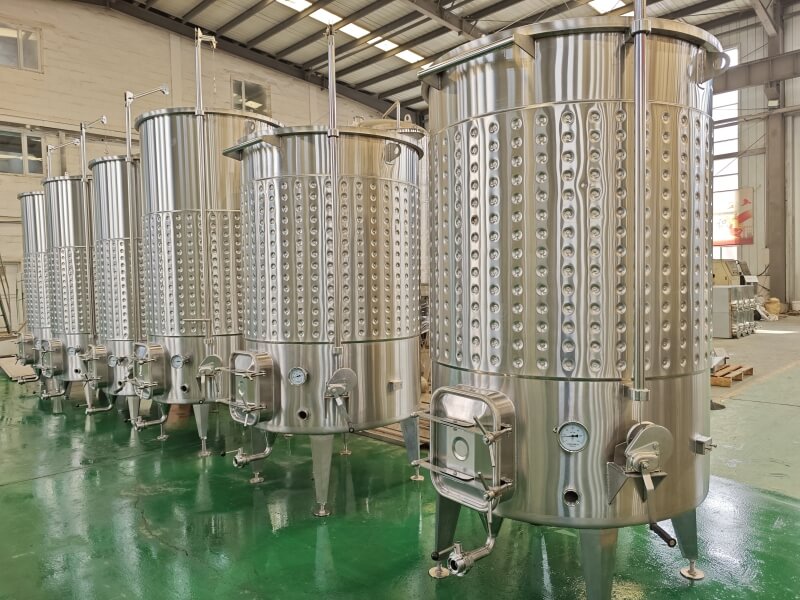

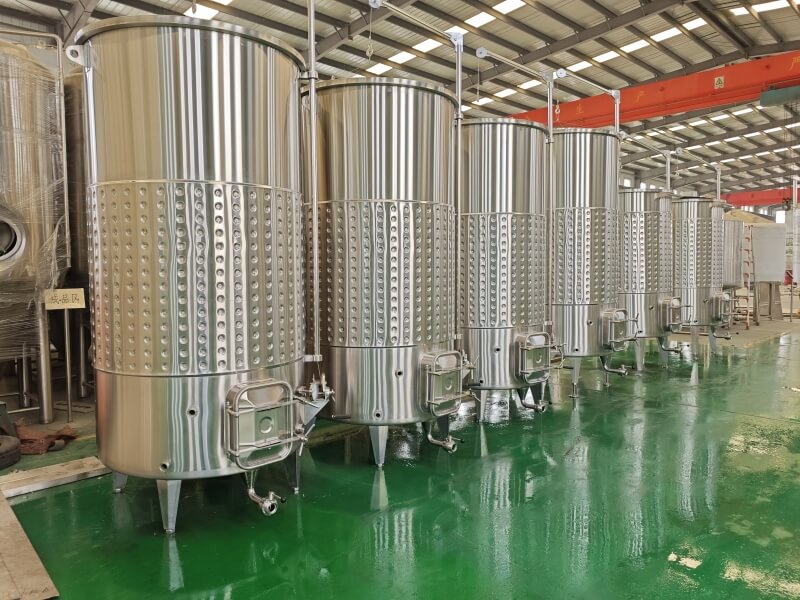

Wine tanks with dimple cooking jacket
Dimple cooling jacket on the bodysingle stage or double stages cooling
top manhole and side manhole
with thermometer on body
wine outlet with clamp connection or thread connection
sieve mesh inside for red wine
Wine tanks with cooling belt
cooling belt on the body
single stage or double stages cooling
top manhole and side manhole
with thermometer on body
wine outlet with clamp connection or thread connection
sieve mesh inside for red wine
Fermenter Detail
| Output/Brew | 10HL |
| Brew/Week | 6~12 |
| Output/Week | 60~120HL |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/Directly Fired |
| Area Request | >70M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
