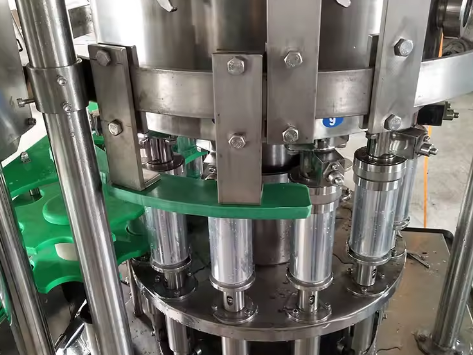

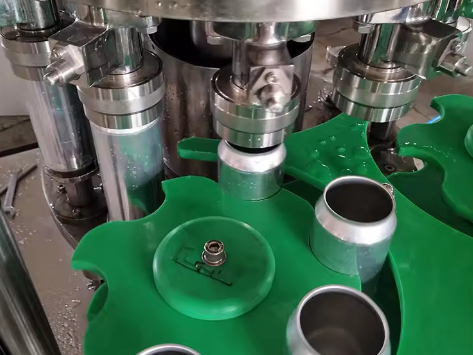

Full auto 12-1 heads cans filler & seal beer/gas beverage machine
Function: Filler beer cans
Machine characteristics:
1. The machine has variable frequency speed regulation, fast filling speed, overload protection device, card bottle stop, soft start, and elastic bottle holder to reduce bottle damage.

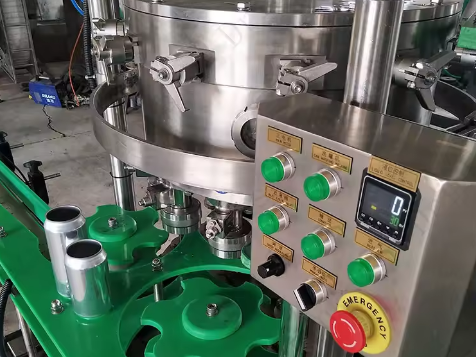

2. The filling quantity is adjusted by electric synchronous stepless adjustment. Pressing the addition and subtraction adjustment button can adjust the filling amount. The digital display accurately displays the instantaneous filling capacity, and has a manual fine adjustment system, which is more filling capacity. accurate.
3. The filling range of the machine is large, and the filling amount can be adjusted between 125-550 mm.
4, the applicable bottle height range, can be adjusted between 150-350 mm (out of range can be customized)
5. The main seals are made of imported silica gel, and the main parts are made of 304 stainless steel that meets food hygiene standards.
1. The machine has variable frequency speed regulation, fast filling speed, overload protection device, card bottle stop, soft start, and elastic bottle holder to reduce bottle damage.
2. The filling quantity is adjusted by electric synchronous stepless adjustment. Pressing the addition and subtraction adjustment button can adjust the filling amount. The digital display accurately displays the instantaneous filling capacity, and has a manual fine adjustment system, which is more filling capacity. accurate.
3. The filling range of the machine is large, and the filling amount can be adjusted between 125-550 mm.
4, the applicable bottle height range, can be adjusted between 150-350 mm (out of range can be customized)
5. The main seals are made of imported silica gel, and the main parts are made of 304 stainless steel that meets food hygiene standards.
Specification
Machine Size:1065mm*1000mm*1850mm
Filling method: Upright filling
Capacity:500-3000 cans/h
voltage: 3phase 380V 50Hz or customized
Filling accuracy 99%
Filling volume 150-750ml cans
Total power:0.75W
Beer pressure:0.12～0.15Mpa
Air pressure:≥0.5Mpa
CO2 pressure：≥0.2Mpa
Cylinder valve pressure:0.4～0.5Mpa
CO2 filling pressure valve pressure:0.1～0.15Mpa
Cleaning water pressure:0.3～0.4Mpa
Filling method: Upright filling
Capacity:500-3000 cans/h
voltage: 3phase 380V 50Hz or customized
Filling accuracy 99%
Filling volume 150-750ml cans
Total power:0.75W
Beer pressure:0.12～0.15Mpa
Air pressure:≥0.5Mpa
CO2 pressure：≥0.2Mpa
Cylinder valve pressure:0.4～0.5Mpa
CO2 filling pressure valve pressure:0.1～0.15Mpa
Cleaning water pressure:0.3～0.4Mpa
Glycation Details
1. Inside heating device
2. Upper Interior Lauter Tun
3. ring filtration pipe
4. False Bottom-Back
5. manhole
6. inside stir
7. buffer tank
8. Grain door
9. Feed water mixer
Fermenter Detail
Content Gauge
Inside of FV
Manhole
Racking Arm
Sample Vavle
Spunding Valve
product Package
LCL(Less Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by Plastic Film
3.Load in Wooden Case
4. Fix by Attaching Strap in the Case
5.Close by Nails&tight by attaching strap finally
FCL(Full Container Load)
1.Pack by EPE(Pearl Wool)
2.Cover by plastic film
3.Fix on the Iron frame attaching strap
4.Load onto the container
5.Fix the tank to the wall of container by attaching strap
Accessories For Auxiliary Machines
Hops gun
Plate heating exchanger
Steam Boiler
Weld Polishing
| Part 1: Grain Miller | |
| Capacity | 300-500kg/hr |
| Function | Curshing malt for mashing |
| Material | Carbon steel or stainless steel |
| Crushing Particle Size | Adjustable |
| Wheels | Optional commercial brewing system |
| Part 2: 4 vessel brewhouse | |
| Capacity | 1000L brewhouse tanks and 2000L hot liquor tank |
| Brewhouse structure | Mash tun/lauter tank/kettle tank/whirlpool tank+hot water tank |
| Heating method | Steam heating( Boiler/ steam generator is necessary) |
| Direct fire heating and Electric heating are optional | |
| Pump | 1 set wort pump+1 set hot water pump |
| Platform | Included turnkey 1000l beer brewing equipment system |
| Heat exchanger | Double stage brand |
| Customization | Customize tank structure, pipe flowing, installation and others |
| Part 3: Fermentation Tank | |
| Capacity | 1000L fermenter or 2000L fermenter |
| Size | Φ1210mmx2710mm or Φ1560mmx3130mm(Customized ) |
| Function | Beer Fermenting/first fermentation |
| Structure | Double wall with jacket and insulation |
| Manway Site | Top or Side, optional |
| Cooling medium | Glycol water |
| Fermenting pressure | 2bar or 3bar beer making machine for beverage |
| Spunding valve | Available for adjusting fermenting pressure inside tank |
| Part 4: Bright Beer Tank | |
| Capacity | 1000L Bright beer tank or 2000L bright beer tank |
| Size | Customized |
| Function | Beer maturing/Secondary fermentation |
| Fermenting Pressure | 2bar or 3bar |
| Part 5: Glycol Chilling System | |
| Configuration | Matched glycol water tank+ chiller+pipeline |
| Control type | Automatic control |
| Installation site | Outdoor beer making machine for beverage |
| Pipeline | PPR; PEX or Stainless Steel |
| 6: Controlling System | |
| Cabinet Material | Anti-power Plastic painting or Stainless Steel cover |
| Assembling Style | Floor/Wall hanging |
| Certificate | CE certificated |
| Control Type | Manual control; PLC automated control is optional |
| 7: CIP Cleaning System | |
| Capacity | 100L |
| Structure | Two tanks with cart and wheels |
| VFD | Yes beer making machine for beverage |
| Independent Controller | Yes |
| Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
| SP-50 | 50L/day | 14US Gallon | 0.15㎡ | 550mm | 1500mm |
| SP-100 | 100L/day | 26US Gallon | 0.25㎡ | 650mm | 2000mm |
| SP-200 | 200L/day | 53US Gallon | 0.25㎡ | 850mm | 2200mm |
| SP-300 | 300L/day | 79US Gallon | 0.3㎡ | 950mm | 2500mm |
| SP-500 | 500L/day | 132US Gallon | 0.5㎡ | 1160mm | 2800mm |
| SP-600 | 600L/day | 158US Gallon | 0.6㎡ | 1220mm | 2350mm |
| SP-700 | 700L/day | 185US Gallon | 0.7㎡ | 1250mm | 2380mm |
| SP-800 | 800L/day | 212 US Gallon | 0.8㎡ | 1260mm | 2400mm |
| SP-1000 | 1000L/day | 264US Gallon | 1.0㎡ | 1360mm | 3000mm |
| SP-1500 | 1500L/day | 396US Gallon | 1.5㎡ | 1520mm | 2900mm |
| SP-2000 | 2000L/day | 528US Gallon | 2.0㎡ | 1760mm | 3150mm |
| SP-2500 | 2500L/day | 660US Gallon | 2.5㎡ | 1800mm | 3200mm |
| SP-3000 | 3000L/day | 792US Gallon | 3.0㎡ | 1860mm | 3800mm |
| SP-5000 | 5000L/day | 1320US Gallon | 5.0㎡ | 2260mm | 4400mm |
