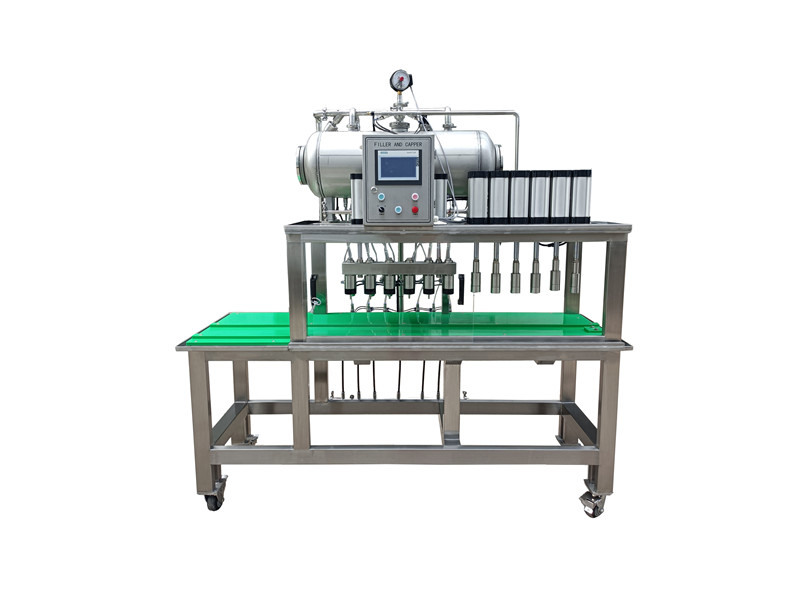

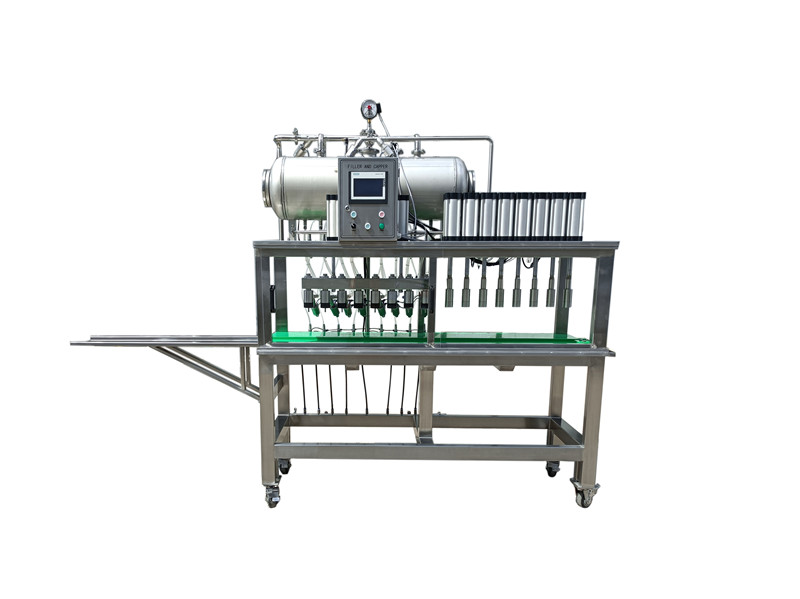

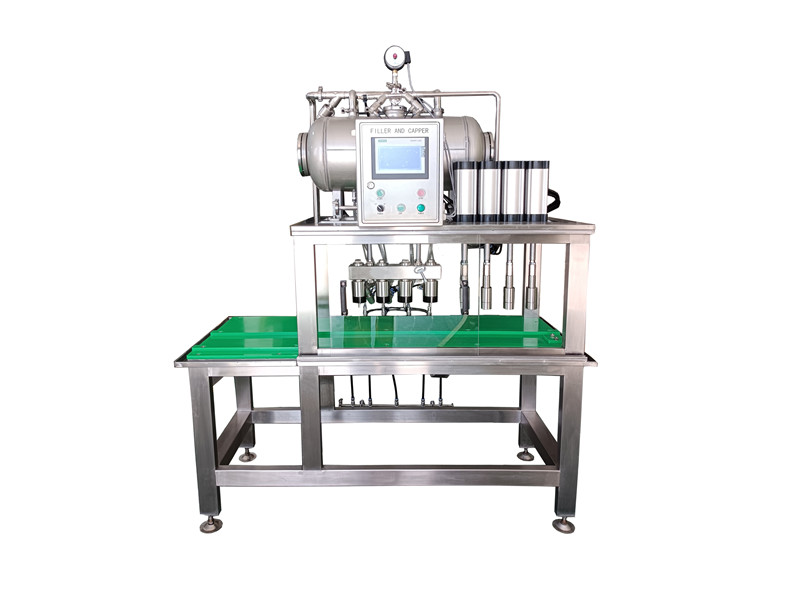

Semi-auto bottle filler and capper machine with 4 heads, 6heads,8heads or 10head
Main features
1. Programmable controller whole process automatic control.

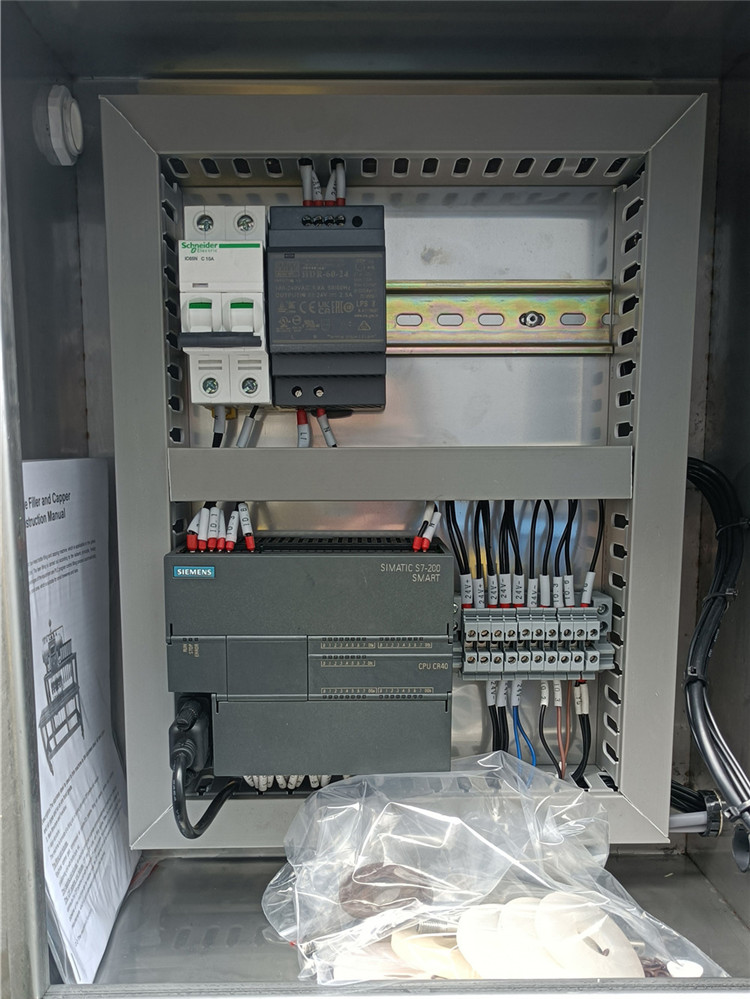

2. PLC adopts Germany Siemens.

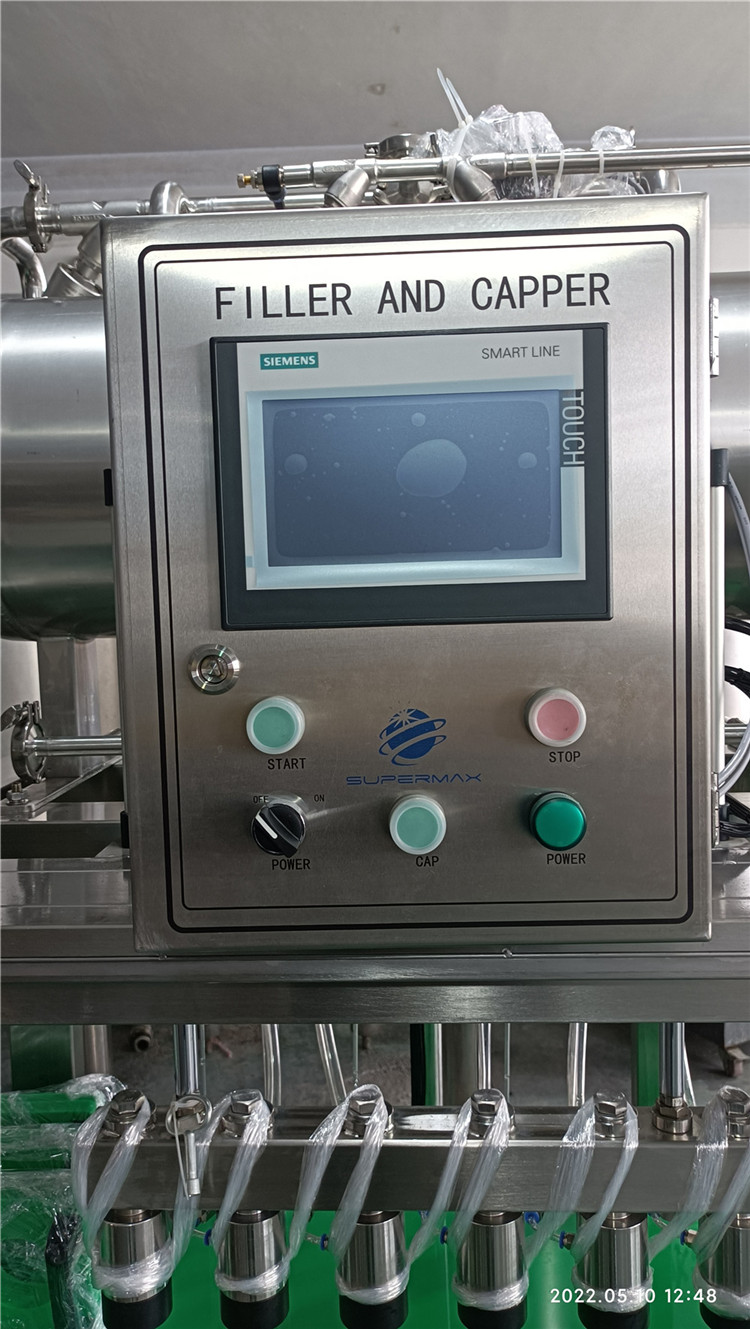

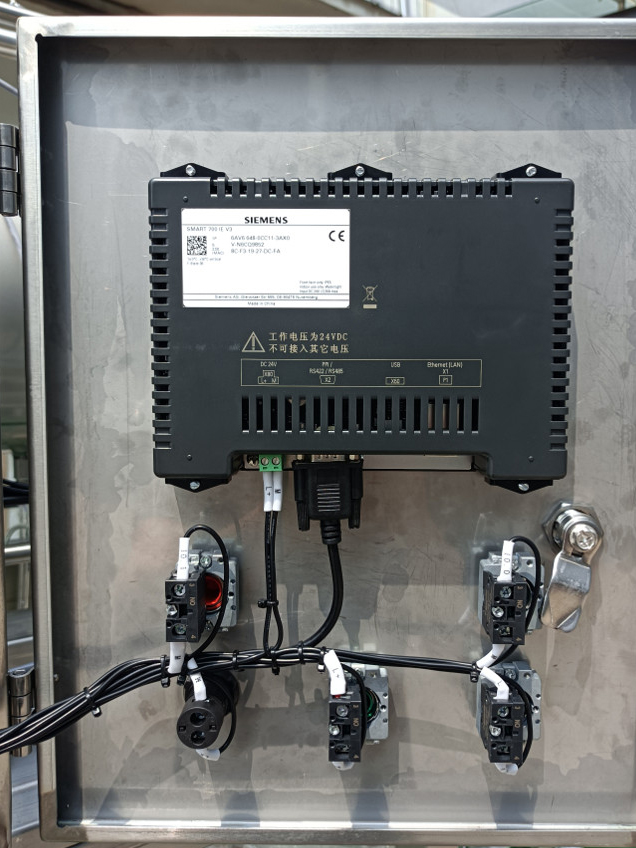

3. The touch screen adopts 7-inch display screen (Chinese and English interface, memory 2 sets of filling procedures).
4. All parameters can be modified without shutdown.
5. The filling machine buffer tank into the beer and CO2 standby pressure automatic control.
6. the equipment filling area operation with automatic and manual control procedures.
7. With automatic transmission chain, automatic into the cans, automatic output after filling.
8. Customize according to the samples provided by customers.(500ml can as per sample)
9. The highest output of similar equipment.
10, with the relevant tank type and barrel type replacement accessories.
11. Put the cans into the conveying chain manually, automatically arrange the cans, automatically feed the cans, automatically fill the cans, and automatically output after filling.
12. Fill 8 cans at a time.
13. The filling machine has a cleaning system, which can be connected with the CIP pipeline.
14. Capping machine with automatic conveyor chain, automatic into the tank, automatic cap, automatic cap, automatic output after capping, capping machine is suitable for 500ml can capping.
15. After filling machine, automatic output, automatic capping, automatic capping.
16. Description: Considering the continuous type of normal operation of the filling equipment, the requirement for the wine source pressure is higher. The wine source pressure required by the filling machine is not less than 0.23Mpa.Therefore, consider the regulation of the site, if it can not meet the requirements, it is recommended to increase a frequency conversion booster pump.The main wine pipeline of the filling machine shall be stainless steel pipeline with no less than 38 outlet diameter.

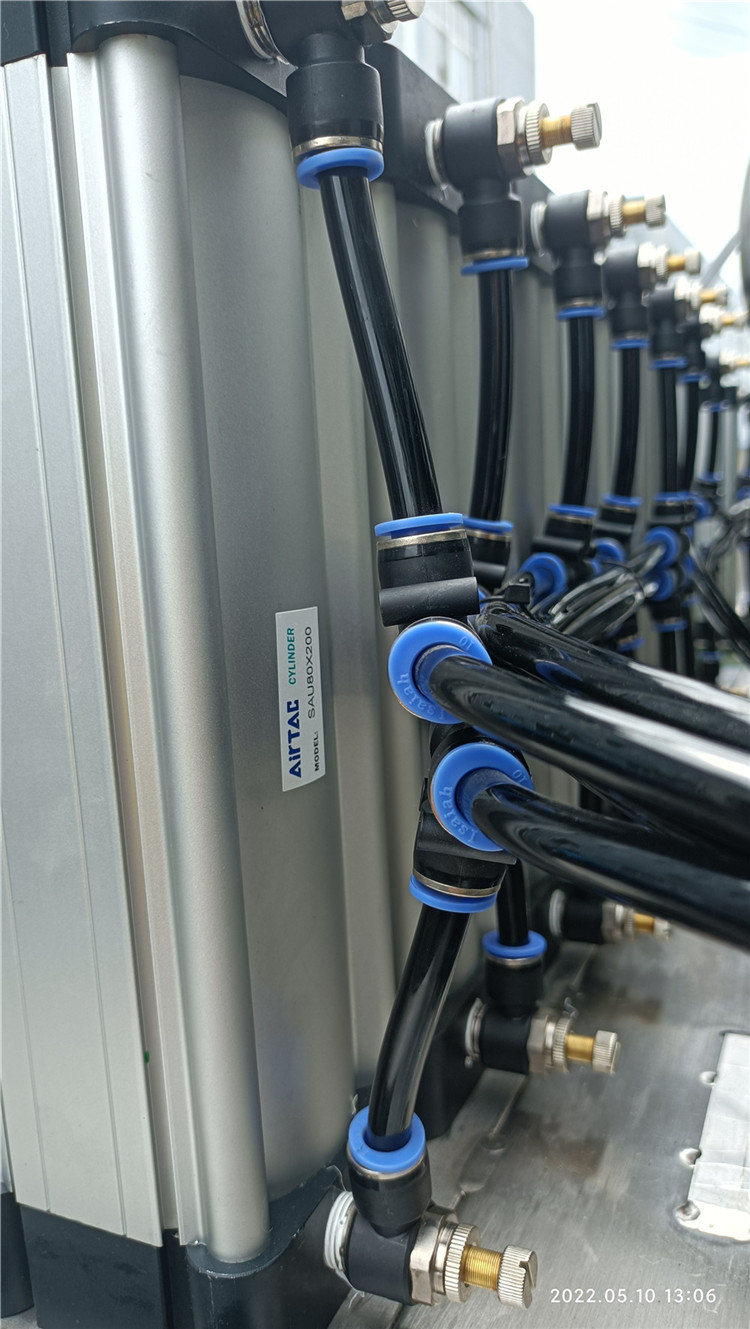

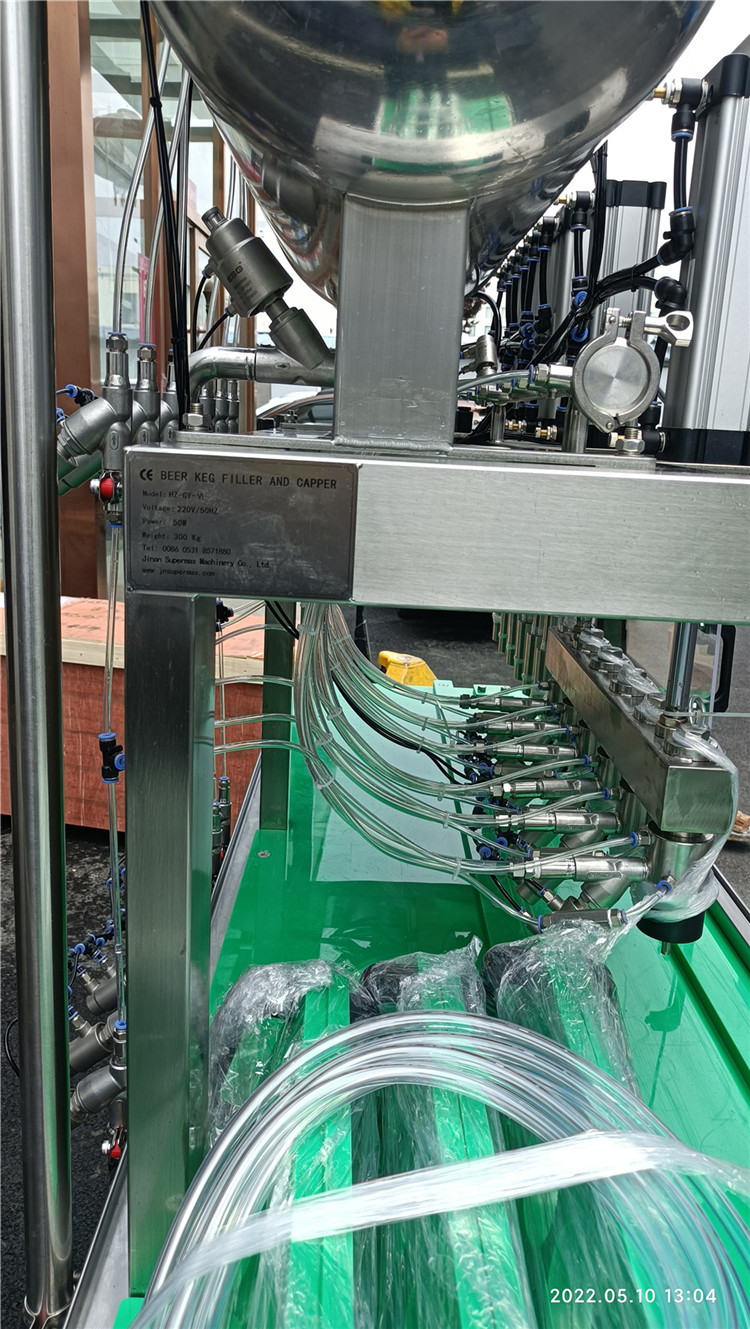

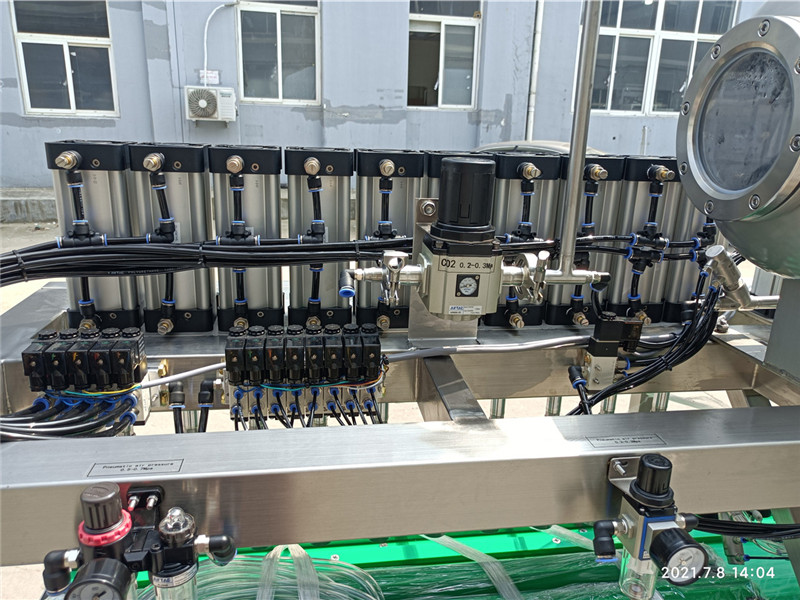

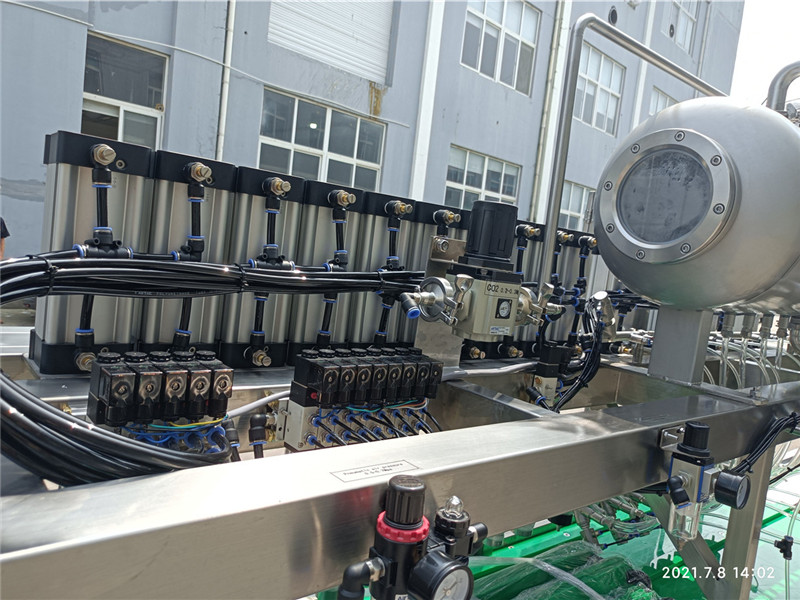

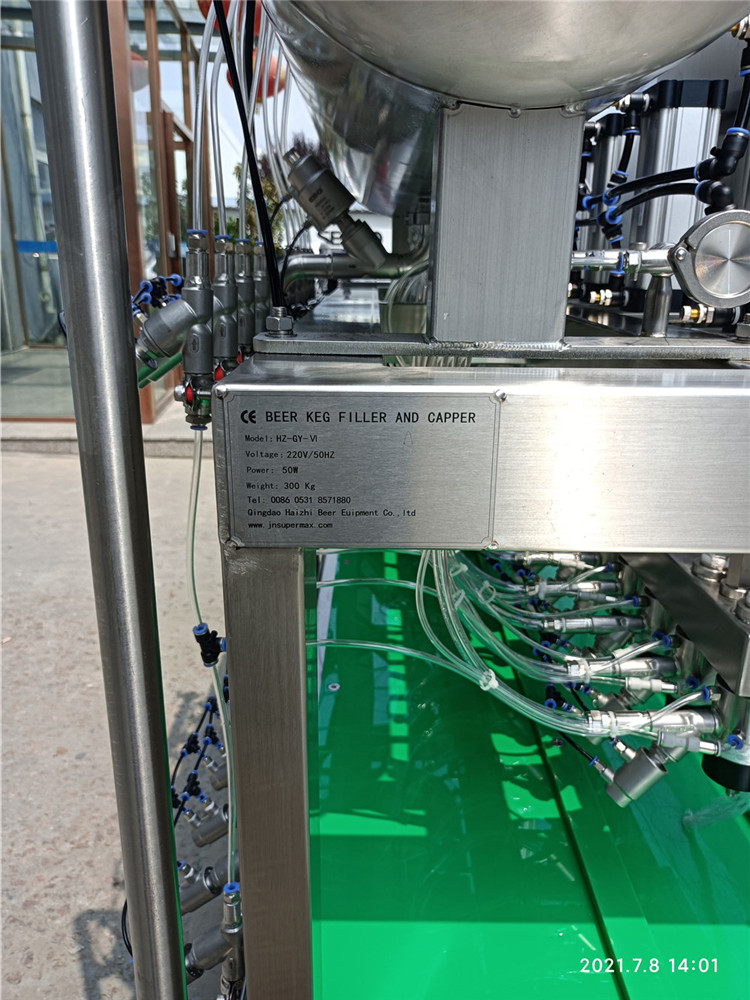

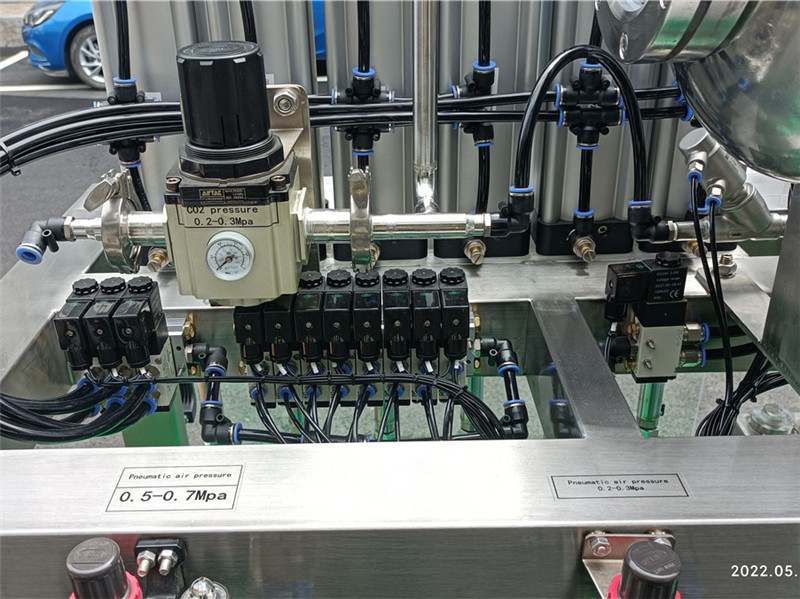

detail picture

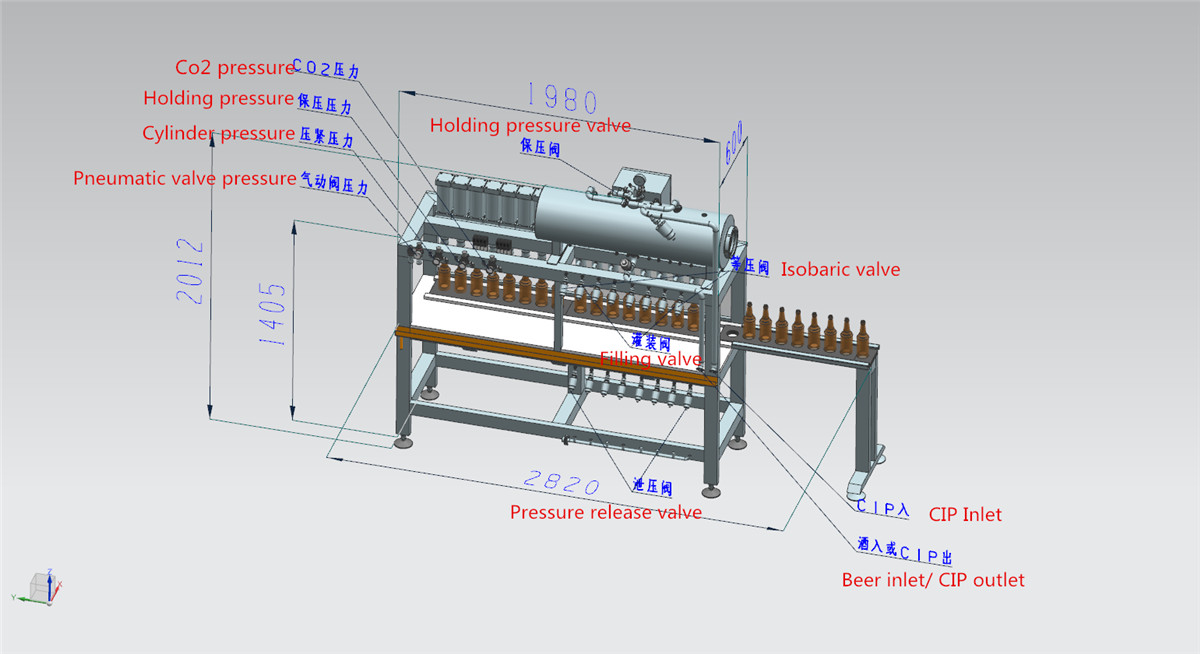

Size | 6000mm*1200mm*2200mm |
Net weight | 1500kg |
Capacity | 650-700 cans/h(500ml can) |
voltage | Customized |
Beer loss | 2<‰ |

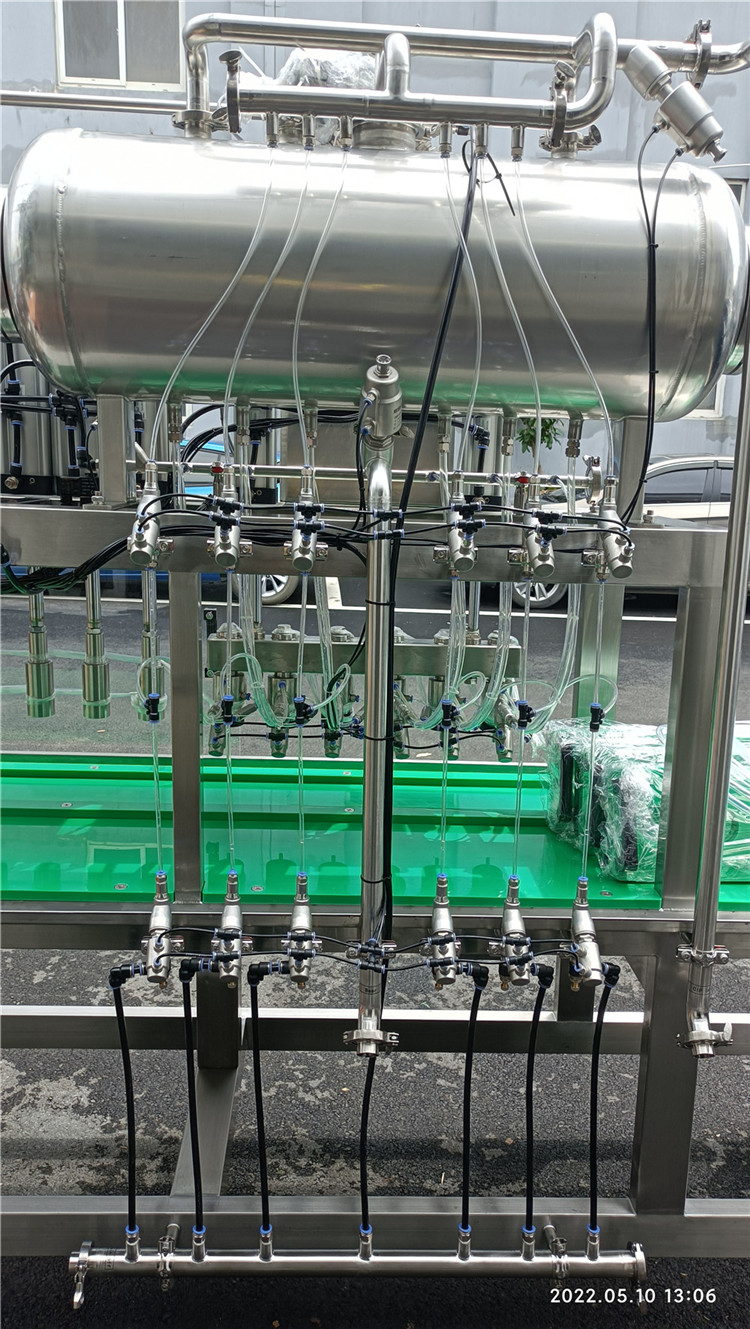

Buffer tank capacity | 100L |
Total power | 4KW |
